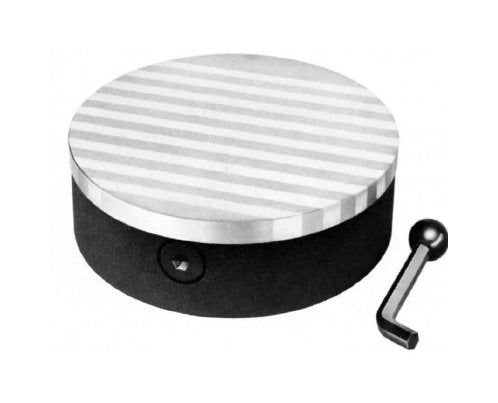

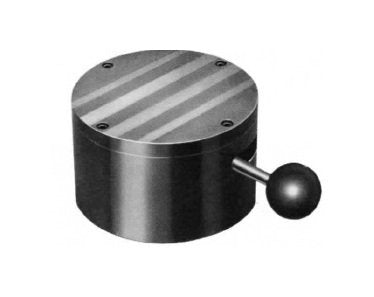

The Heavy Duty Precision Rotary Chuck is designed for high-power operations on lathes, grinders, and machinery with rotating spindles. Featuring a robust magnetic steel top plate and nonmagnetic stainless construction, it offers fine pole spacing for precise workholding. With dimensions of 8 1/8 in x 8 in x 3 in and a weight of 25 lb, this chuck can withstand heavy lathe cuts with ease. Dowel pins or screws can be added for additional stability, and customization for odd configurations is possible. Suitable for industrial applications requiring precision and durability.
Product Specifications
Manufacturing Notes 0
7 to 9 in. and 14 in. Round available on request.

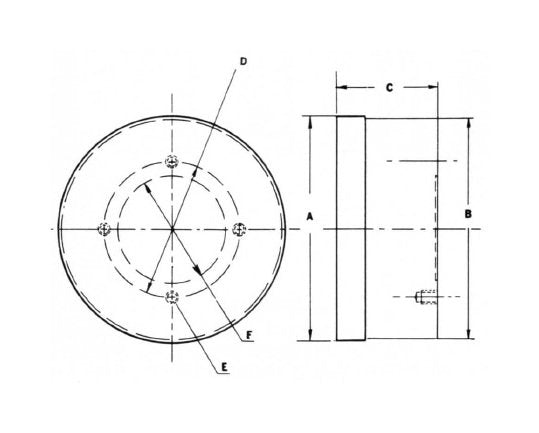

Specifications Dimension A
8 1/8 in
Specifications Dimension B
8 in
Specifications Dimension C
3 in
Specifications Dimension D
4 1/2 in
Specifications Dimension E
3/8 in -16 X 3/8 in
Specifications Dimension F
3 3/4 in
Specifications Number Of Holes
4
Specifications Pole Spacing
1/8 in
Specifications Weight
25 lb
