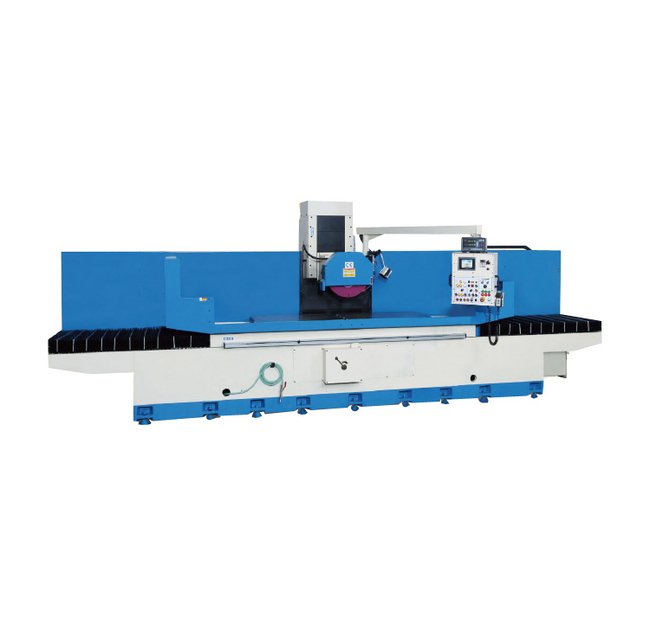

The Column Type Series Precision and Heavy Duty Surface Grinding Machine is a powerhouse of precision engineering, offering a clamping surface width of 24 inches and length of 104 inches. With a maximum cross travel of 26 inches and grinding width of 24 inches, this machine excels in delivering impeccable grinding results. Equipped with advanced features like a servo motor for auto downfeed, longitudinal table speed range, and multiple grinding wheel options, this machine ensures high productivity and accuracy. Ideal for industrial and institutional applications, this grinding machine is a reliable solution for achieving exceptional surface finishing.
Product Specifications
Note 0
GT Column Surface Grinders 2A-2Axis Automatic, 3A-3Axis Automatic.Model 2A is two axis automatic with rapid down feed, model 3A is three axis automatic and auto-stop. Y & Z axis are driven by servo motor with touch screen panel NC control.Manufacturer reserves the right to change or improve specifications without notice.
Optional Accessories 0
Vertical Spindle Grinding EquipmentElectro-Magnetic Chuck (includes Rectifier with Automatic Demagnetizing )Spare Wheel FlangeBalancing StandHalogen Machine LampCoolant System with Paper FilterMagnetic Dust SeparatorDRO 1 Or 2 Axisvariable Speed Spindle
Specifications Approximate Net Weight
22000 lb
Specifications Arm Movement Type Grinding Area
32 x 48 ~ 40 x 220 in²
Specifications Auto Downfeed Servo Motor
0.0005 to 0.002 in
Specifications Chuck Weight
1490 lb
Specifications Continuous Crossfeed
0.9 to 5 ft/min
Specifications Crossfeed Intermittent
0.004 to 1.57 in/feed
Specifications Crossfeed Per Division
0.0001 in | 0.001 in | 0.005 in
Specifications Double Column Type Grinding Area
48 x 80 ~ 80 x 240 in²
Specifications Downfeed Per Division Mpg
0.0001 in | 0.0005 in | 0.001 in
Specifications Downfeed Per Revolution Mpg
0.01 in | 0.05 in | 0.1 in
Specifications Floor Height
96.8 in
Specifications Floor Length
289 in
Specifications Floor Width
117 in
Specifications Grinding Wheel Inside Diameter
5 in
Specifications Grinding Wheel Inside Diameter Optional
5 in
Specifications Grinding Wheel Outside Diameter
20 in
Specifications Grinding Wheel Outside Diameter Optional
20 in
Specifications Grinding Wheel Width
2 in
Specifications Grinding Wheel Width Optional
3 in
Specifications Hydraulic Pump Motor Power 6 Pole
7.5 hp
Specifications Longitudinal Table Speed
10 to 105 ft/min
Specifications Manufacturer
Supertec®
Specifications Maximum Cross Travel
26 in
Specifications Maximum Distance Between Spindle Center To Table
31.5/39.4 in
Specifications Maximum Grinding Length
100 in
Specifications Maximum Grinding Width
24 in
Specifications Maximum Workpiece On Chuck
3960 lb
Specifications Saddle Movement Type Grinding Area
6 x 14 ~ 18 x 40 in²
Specifications Spindle Motor Power Optional
15/25 hp
Specifications Spindle Speed At 50 Hz
1450 rpm
Specifications Spindle Speed At 60 Hz
1720 rpm
Specifications Table Clamping Surface Length
104 in
Specifications Table Clamping Surface Width
24 in
Specifications Total Motor Power
24 hp | 34 hp
Standard Accessories 0
Grinding Wheel - 1 Pc.Wheel Flange - 1 setCoolant System - 1 setTools with Box - 1 setBalancing Arbor - 1 Pc.Wheel Extractor - 1 setChiller for Hydraulic Oil - 1 setHydro Static System - 1 set
