Heavy-Duty Pull and Junction Box with Overlapping Cover
Heavy-Duty Pull and Junction Box with Overlapping Cover
SKU:H22-e3cd17
Durable cast aluminum junction box with overlapping cover for weatherproof protection. Conforms to NEMA 4 and NEMA 3R standards.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Heavy-Duty Pull and Junction Box with Overlapping Cover
$129.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Pull and Junction Box with Overlapping Cover
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

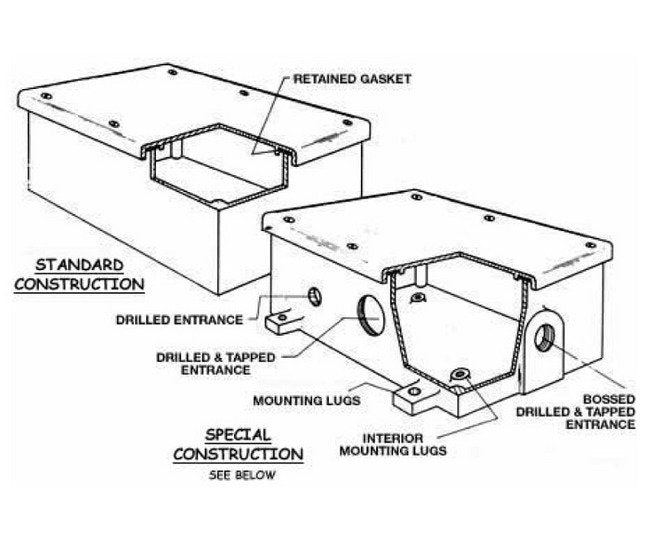

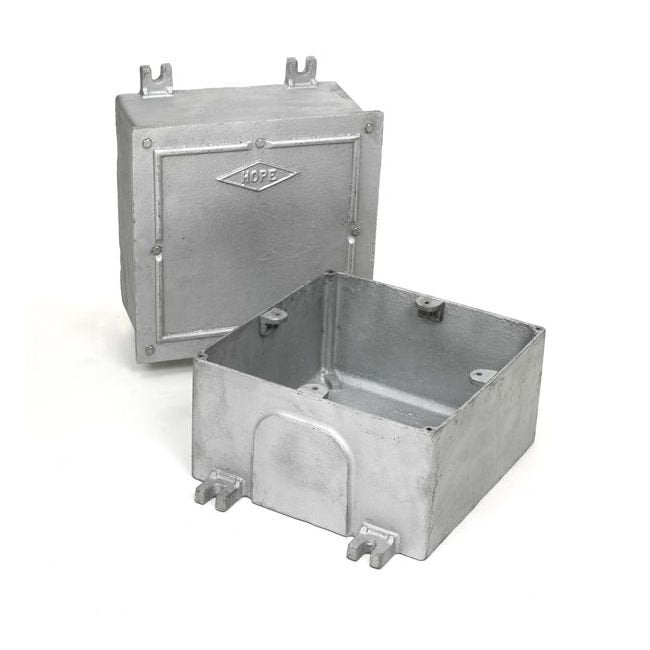

The Heavy-Duty Pull and Junction Box, Type H2200, is a robust solution designed for industrial applications. Constructed from durable cast aluminum, this surface-mount box features an overlapping cover for enhanced protection against harsh elements. With a neoprene gasket and stainless steel machine screws, it ensures a weatherproof and dust-tight enclosure, meeting NEMA 4 and NEMA 3R standards. Available extras include custom drilling options, bosses for rain-tight conduit entrances, and mounting lugs for outdoor installations. Suitable for various electrical devices, junctions, and pull services, this box can also be made in cast aluminum variant for specific requirements.
Product Specifications
Specifications Approx Wall Thickness
3/8 in.
Specifications Approx Weight
28.62 lbs
Specifications Construction
Cast Aluminum
Specifications Holes Can Be Boss Drilled And Tapped
Holes can be boss, drilled and tapped by Hope Electrical Products at additional cost. Please mark up the hole locations on the attached drilling template and submit with your order to request for quote.
Specifications Inside Depth
12 in.
Specifications Inside Length
12 in.
Specifications Inside Width
12 in.
Specifications Mounting
Surface
Specifications Stock Note
If you donât see a box size listed that you need, please inquire - we may have it. This list does not represent all of our boxes.
Specifications Third Party Certification
UL E189027
Specifications Type
H2200
