Heavy Duty Push and Hand Geared End Truck Kits
Heavy Duty Push and Hand Geared End Truck Kits
SKU:REL-295b46
Upgrade your overhead cranes with precision machine-cut alloy carbon steel Hand Geared and Push Type End Truck Kits for smooth and quiet operation.
Regular price
$3,290.99
Regular price
Sale price
$3,290.99
Unit price
per
Initiate Order
Heavy Duty Push and Hand Geared End Truck Kits
$3,290.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Push and Hand Geared End Truck Kits
$3,290.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

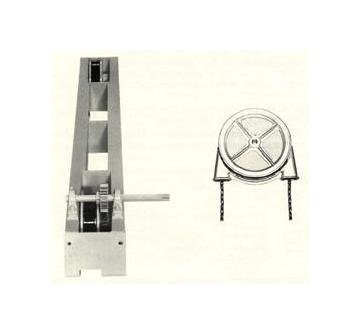

Upgrade your overhead cranes with our Heavy Duty Push and Hand Geared End Truck Kits. Crafted with precision machine-cut alloy carbon steel wheel gearing and large pitch diameter pinion gears, these kits ensure long life and quiet operation. The hand wheel drive features a large diameter pocket wheel with a chain guard for smooth operation. With heavy-duty cam follower bearings for non-skewing crane operation and steel channel truck frames for accurate wheel alignment, our kits guarantee true running operation. Perfect for industrial use, these kits come in models TCP and TCG with a 10-ton capacity and ASCE Rail Size 40, meeting stringent procurement standards.
Product Specifications
Specifications Asce Rail Size
40
Specifications Capacity
10 Tons
Specifications Crane Wheel Diameter
10 inches
Specifications Hand Wheel Diameter
14 inches
Specifications Max Wheel Load
14000 lbs.
Specifications Model
Model TCP and TCG Crane Kits
Specifications Net Weight Per Pair
900 lbs.
Specifications Wheel Base
5'-0"
Standard Features 0
Wheel Gearing : Alloy carbon steel precision machine cut, sized and proportioned with large pitch diameter pinion gears having generous face width for long life and quiet operation. Pinion gears are supported between self-aligning lubricated and sealed ball bearing pillow blocks - no overhung gearing. Hand Wheel Ddive : Large diameter pocket wheel for ease of operation complete with chain guard and sufficient alloy hand chain for a standard 8'-0" operating hand chain drop. Side Roller Guidance : Heavy duty cam follower bearing's provide smooth non-skewing crane operation plus reduced crane wheel and runway rail wear. Side roller setting requires 1/4" plus or minus runway rail alignment to insure smooth crane operation. Truck Frames : Fabricated from steel channel shapes with heavy axle reinforcement bosses, precision drilled bridge girder connection pads and protective front plates with rail safety lugs all jig assembled to insure accurate wheel alignment for true running operation. Split truck design allows quick easy crane erection on either open end or closed end runway systems. Hand Geared UCG : All parts shown are furnished. Push Type UCP : All plain wheels - no gearing. Complete dimensional data furnished upon request and with each order.
