Heavy-Duty Push-Button Switch with Seal and Screw-On Cap
Heavy-Duty Push-Button Switch with Seal and Screw-On Cap
SKU:CVP-dd3c81
Heavy-Duty SPST Push-Button Switch with Seal, Screw-On Cap – Ideal for 36V DC applications. Silver contacts, 35A @ 12V, Spring return to Off.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Heavy-Duty Push-Button Switch with Seal and Screw-On Cap
$29.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Push-Button Switch with Seal and Screw-On Cap
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

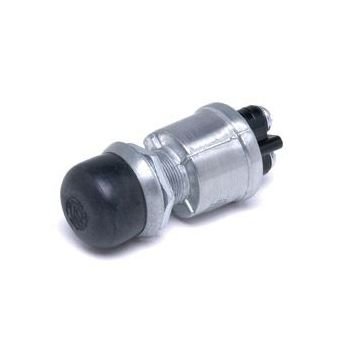

The CVP Pushbutton Push-Pull Switches line presents the Single Pole Single Throw (SPST) Heavy-Duty Push-Button Switch with Seal and Screw-On Cap, designed for applications up to 36 V DC. This rugged switch features silver contacts, a chrome plated button and face nut, and a 35 A capacity at 12 V and 20 A at 24 V DC. Equipped with a spring return to Off, it ensures reliable operation. Additionally, this model includes an O-ring seal in the mounting stem and a screw-on black rubber protective cap (83280-03) for enhanced durability and longevity.
Product Specifications
Specifications Actuator Type
Plunger
Specifications Contacts
Normally Open (NO)
Specifications Contact Material
Silver
Specifications Current
35 A
Specifications Direct Current Dc Voltage
12 V
Specifications Mounting Stem Thread Size
5/8-32 in
Specifications Type
Single Pole Single Throw (SPST)
