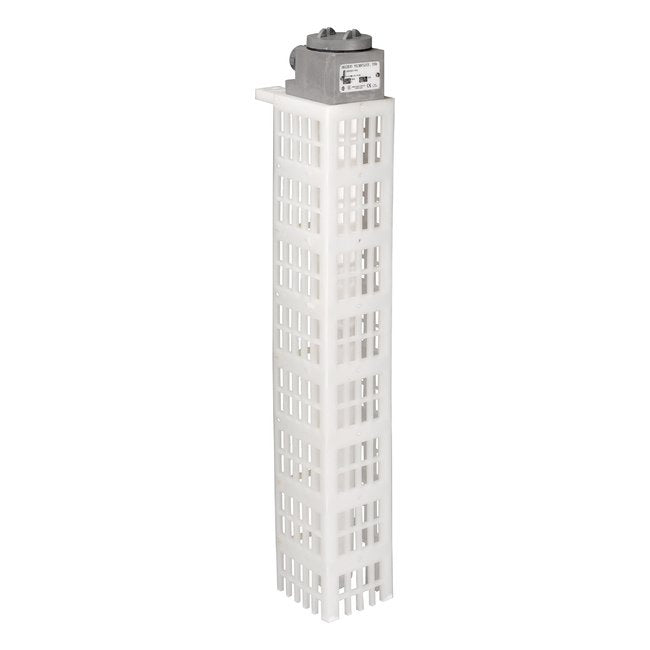

Heavy Duty QM Series Quartz Heaters with Replaceable Metal Elements
Heavy Duty QM Series Quartz Heaters with Replaceable Metal Elements
SKU:HEA-162367
Experience superior chemical resistance and outstanding performance with our QM Series Quartz Heaters, ideal for demanding industrial applications.
Regular price
$699.99
Regular price
Sale price
$699.99
Unit price
per
Initiate Order
Heavy Duty QM Series Quartz Heaters with Replaceable Metal Elements
$699.99
Quantity: 1
Claim Your Seller Account
Heavy Duty QM Series Quartz Heaters with Replaceable Metal Elements
$699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The QM Series Quartz Heaters with Metal Elements provide superior chemical resistance, featuring a heavy wall quartz sheath with replaceable metal element and polypropylene guards. With outstanding performance and watt densities of up to 25 watts per square inch, these heaters ensure long service life. Safety is paramount with grounded internal metal elements and built-in thermal protectors. Certified to meet cULus and CSA standards, available in various wattages and voltages, with options like replaceable and resettable thermal protectors. Perfect for aqueous acidic plating solutions and pickling tanks.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features And Benefits Features And Benefits
SUPERIOR CHEMICAL RESISTANCE: For use in most aqueous acidic plating solutions and pickling tanks. Check solution recommendation chart or with your chemical supplier for proper sheath material selection. RUGGED CONTRUCTION: Heavy wall quartz sheath with replaceable metal element and polypropylene guards (complete assembly). OUTSTANDING PERFORMANCE: Watt densities up to 25 watts per square inch (4 w/cm2) ensure long service life. CORROSION RESISTANT HEAD: Vapor resistant, flame retardant polypropylene terminal enclosure with 3 ft (.9m) flexible PVC liquid tight conduit. SAFETY FEATURES: Grounded internal metal element. Thermal protector built in. Replaceable P1 protector standard for solutions up to 180ºF (82ºC). CERTIFICATIONS: cULus listed (less than 4000 watts), and 600 volt CSA only. SIZES:500 watts to 10,000 watts. VOLTAGES: 120 to 600 volts. OPTIONS AVAILABLE (consult factory):Replaceable thermal protectors: P4: for solutions up to 230°F(110°C). Resettable thermal protectors: P2: for solutions up to 180°F(82°C). P6: for solutions up to 230°F(110°C). Special configurations and lengths. Longer wire and conduit lengths. Three phase elements. Fluoropolymer(PTFE) guards for chromic acid or solutions over 180°F(82°C). Lower watt densities for highly viscous solutions. Temperature and level controls sized to match the heater (sold separately).
Note Note
NOTE: Not for use in hydrofluoric acid or alkaline solutions.
Options Available Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Replaceable thermal protector: P4: for solutions up to 230°F (110°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P6: for solutions up to 230°F (110°C).
Specifications Hot Zone
18 " | 457 mm
Specifications Manufacturer
Process Technology
Specifications Overall Length
29 " | 737 mm
Specifications Phase
Single (Standard) | Three
Specifications Quartz Tube Model
QM329J-**
Specifications Shipping Weight
17.0 Pound
Specifications Single Guard Model
QM29G
Specifications Volts
480 V
Specifications Watts
3000 W
Specifications Weight
17.0 lbs | 7.7 kg
