Heavy-Duty Quick Disconnect Ball Joints

Name: Heavy-Duty Quick Disconnect Ball Joints
Brand: Lexco Cable Manufacturing
SKU: PUS-9e2b62
Price: 29.99 USD
Availability: OutOfStock

SKU:PUS-9e2b62

Reliable Heavy-Duty Quick Disconnect Ball Joints for light to medium-duty linkage applications. Tool-free maintenance and custom sizing available.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

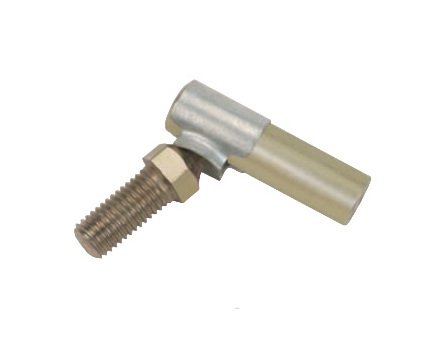

Our Heavy-Duty Quick Disconnect Ball Joints offer a reliable solution for light to medium-duty linkage applications in various industries. With three different configurations available, each featuring a steel ball stud, sleeve, and body, these ball joints are designed to match your load and cost requirements. The quick pull back disconnect assembly allows for tool-free maintenance, ensuring easier access and faster servicing. Suitable for use in temperatures ranging from -60 ÂºF to 250 ÂºF (-51 ÂºC to 121 ÂºC), these ball joints also offer custom sizing options to meet your specific needs. The S/SS series meets SAE J490 specifications, providing assurance of quality and performance.

Product Specifications

Applications 0

Light to medium-duty linkage applications, including:Cable assembliesLight industrial applicationsAgricultural, lawn and garden equipmentRacing (throttle links)

Features 0

Three different configurations, all with steel ball stud, sleeve and body to match your load and cost requirementsQuick pull back, "no tools required" disconnect assembly provides easier access, faster maintenanceCan be used in a wide range of temperatures: -60 ÂºF - 250 ÂºF (-51 ÂºC - 121 ÂºC) Right and left-handed versions availableCustom sizes and assemblies can be built to your specificationsS/SS Series meets SAE J490 specification (S: type S/style 1, SS: type S/style 2)

Material 0

Ball Stud - Low Carbon Steel, Heat Treated, Zinc Plated, Yellow Dichromate TreatedSleeve - Low Carbon Steel, Zinc Plated, Yellow Dichromate TreatedBody: S and SS - Low Carbon SteelBody: SC - Low Carbon Steel, Heat Treated, Zinc Plated, Yellow Dichromate TreatedSpring: S and SS - Stainless SteelSpring Clip: SC - Hardened Spring Steel

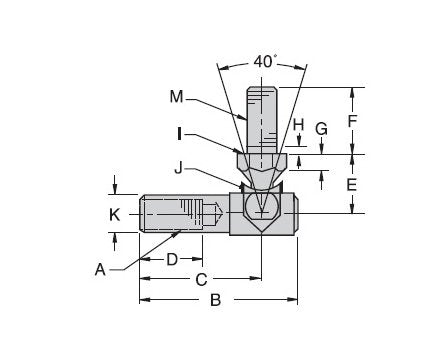

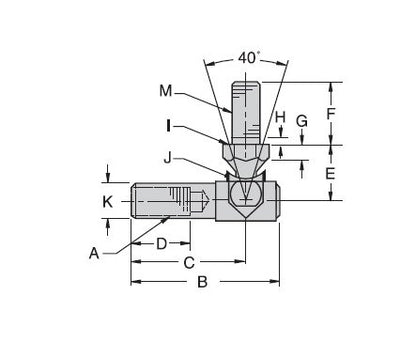

Specifications A Unf

10-32 "

Specifications Ball Diameter Ref

0.250 "

Specifications B 0020

1.156 "

Specifications C 0020

0.875 "

Specifications D Min

0.484 "

Specifications E 0020

0.437 "

Specifications F 0020

0.562 "

Specifications G Ref

0.125 "

Specifications H Ref

0.078 "

Specifications I Ref

0.312 "

Specifications J Ref

0.135 "

Specifications K Ref

0.312 "

Specifications M Unf

1/4-28 "

Specifications Temperature Range

-60 to 250 ÂºF | -51 to 121 ÂºC

CAGE

0T9L4

NAICS

332510

PSC

4030
