Heavy-Duty Quick Disconnect Ball Joints

Name: Heavy-Duty Quick Disconnect Ball Joints
Brand: Lexco Cable Manufacturing
SKU: PUS-5efc93
Price: 39.99 USD
Availability: OutOfStock

SKU:PUS-5efc93

Heavy-Duty Quick Disconnect Ball Joints for versatile applications, featuring steel construction and quick maintenance access.

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

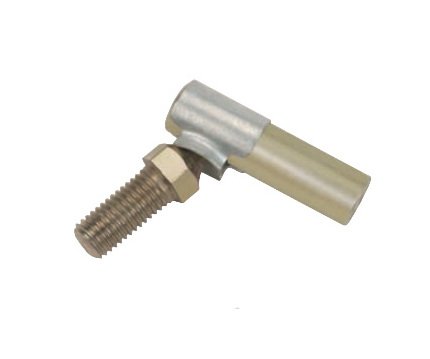

The Heavy-Duty Quick Disconnect Ball Joints are precision-engineered for light to medium-duty linkage applications, catering to various industries like cable assemblies, industrial equipment, agriculture, and racing. With steel ball stud, sleeve, and body, these ball joints ensure durability and reliability. Featuring a quick pull-back disconnect assembly, maintenance becomes faster and more accessible, saving valuable time. Designed to withstand extreme temperatures ranging from -60 Ã‚ÂºF to 250 Ã‚ÂºF, these ball joints offer versatility and performance. Customizable sizes and assemblies are available to meet specific requirements. The S/SS Series is compliant with SAE J490 specifications, ensuring quality and standard adherence.

Product Specifications

Applications 0

Light to medium-duty linkage applications, including:Cable assembliesLight industrial applicationsAgricultural, lawn and garden equipmentRacing (throttle links)

Features 0

Three different configurations, all with steel ball stud, sleeve and body to match your load and cost requirementsQuick pull back, "no tools required" disconnect assembly provides easier access, faster maintenanceCan be used in a wide range of temperatures: -60 ÂºF - 250 ÂºF (-51 ÂºC - 121 ÂºC) Right and left-handed versions availableCustom sizes and assemblies can be built to your specificationsS/SS Series meets SAE J490 specification (S: type S/style 1, SS: type S/style 2)

Material 0

Ball Stud - Low Carbon Steel, Heat Treated, Zinc Plated, Yellow Dichromate TreatedSleeve - Low Carbon Steel, Zinc Plated, Yellow Dichromate TreatedBody: S and SS - Low Carbon SteelBody: SC - Low Carbon Steel, Heat Treated, Zinc Plated, Yellow Dichromate TreatedSpring: S and SS - Stainless SteelSpring Clip: SC - Hardened Spring Steel

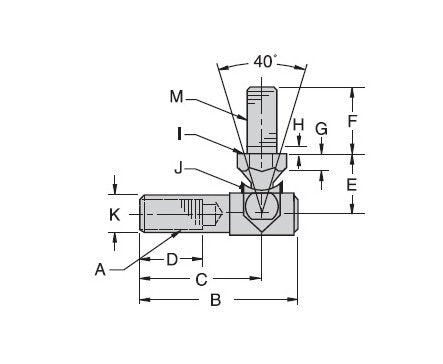

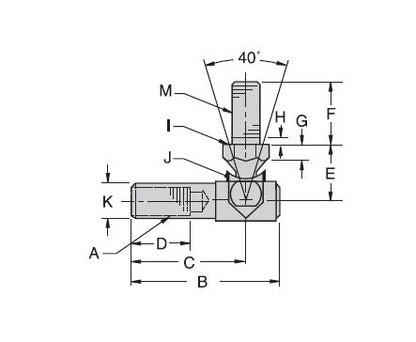

Specifications A Unf

1/4-28 "

Specifications Ball Diameter Ref

0.250 "

Specifications B 0020

1.250 "

Specifications C 0020

0.969 "

Specifications D Min

0.531 "

Specifications E 0020

0.437 "

Specifications F 0020

0.437 "

Specifications G Ref

0.125 "

Specifications H Ref

0.078 "

Specifications I Ref

0.312 "

Specifications J Ref

0.135 "

Specifications K Ref

0.312 "

Specifications M Unf

10-32 "

Specifications Temperature Range

-60 to 250 ÂºF | -51 to 121 ÂºC

CAGE

0T9L4

NAICS

332510

PSC

4030
