Heavy Duty Rectangular Lifting Magnet
Heavy Duty Rectangular Lifting Magnet
SKU:REC-bc6561
Powerful lifting magnet with 50,000 lb capacity, ideal for industrial lifting operations.
Regular price
$4,999.99
Regular price
Sale price
$4,999.99
Unit price
per
Initiate Order
Heavy Duty Rectangular Lifting Magnet
$4,999.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Rectangular Lifting Magnet
$4,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

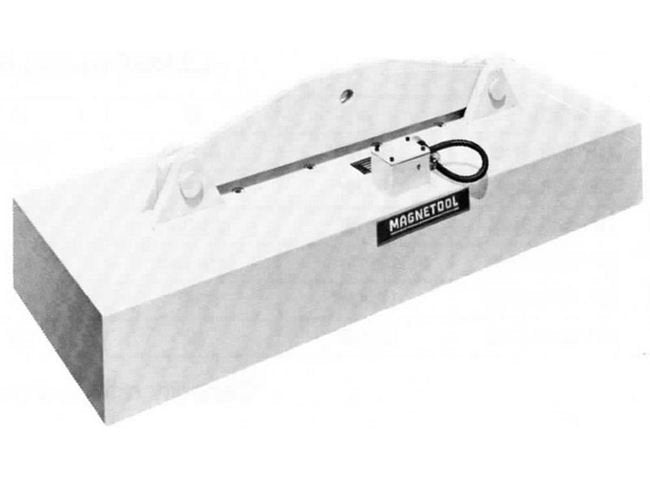

The Heavy Duty Rectangular Lifting Magnet is designed for industrial applications, capable of lifting heavy slabs, billets, castings, and more with ease. With a deep magnetic field that ensures holding power even on irregular surfaces, this magnet offers a lift capacity of 50,000 lb with a 2:1 safety factor on clean, low carbon steel at magnetic saturation. Its 230 VDC operation and 50% duty cycle make it a reliable choice for lifting operations, whether used singly or in multiples on a spreader beam.
Product Specifications
Additional Information 0

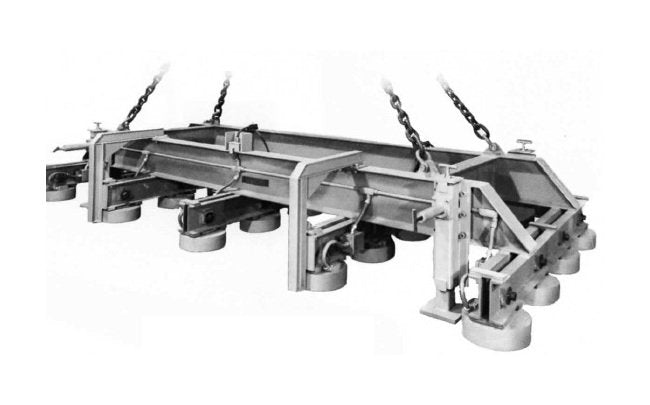

Plate lifting magnetic assembly for lifting plate from 3/8 to 3 in. thick. Horizontal lift capacity is 25,000 lbs.; vertical lift is 10,000 lbs.
Specifications Current
18 A
Specifications Height
8 1/2 in
Specifications Length
106 in
Specifications Lift Capacity
50000 lb
Specifications Weight
4300 lb
Specifications Width
20 in
