Heavy-Duty Reversible Boom Cranes
Heavy-Duty Reversible Boom Cranes
SKU:REV-2fe88a
Effortlessly lift up to 10 tons with the Heavy-Duty Reversible Boom Cranes, designed for exceptional reach and maneuverability in confined spaces.
Regular price
$4,999.99
Regular price
Sale price
$4,999.99
Unit price
per
Initiate Order
Heavy-Duty Reversible Boom Cranes
$4,999.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Reversible Boom Cranes
$4,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

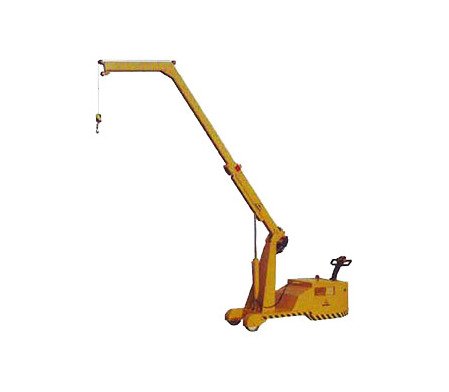

The Heavy-Duty Reversible Boom Cranes are engineered for exceptional lifting capabilities, with a maximum capacity of 10 tons to tackle the toughest tasks effortlessly. Designed with a telescopic boom for added versatility and a sturdy build for longevity, these cranes offer up to 82 inches of reach beyond the wheels for heavy lifting tasks. With optional powered lifting cylinders and self-propelled models available, these cranes provide exceptional maneuverability and adaptability. Ideal for use in confined spaces or areas with limited accessibility, these cranes are a reliable solution for heavy-duty lifting needs.
Product Specifications
General Description General Description
Telescopic boom provides added versatility!Manual hydraulic lifting cylinder is standard. Optional powered lifting cylinder available in electric, either battery (battery not included except on self-propelled models) or 110 volt A/C.Self-propelled available for maximum mobility and versatility on regular-duty models. Standard on heavy-duty models (10,000 lb. capacities & up).Clear reach for heavy jobs. Up to an astounding 82" boom reach beyond its wheels when extended.180º steering for incredible maneuverability! Built at only 34" inches wide for ease of passage through narrow doorways & aisles.Rugged design for long lifeRoller bearing wheels for easy movement and positioningReady to configure your own? Give us a call!Now available up to 100,000 pounds capacity!!
Note Note
A counterweight box is supplied with the RBC, but counterweights are not included, except for self-propelled units.Only RBC-3000 and under are available manually propelled.
Optional Gooseneck Gooseneck Steering Angle
180 º

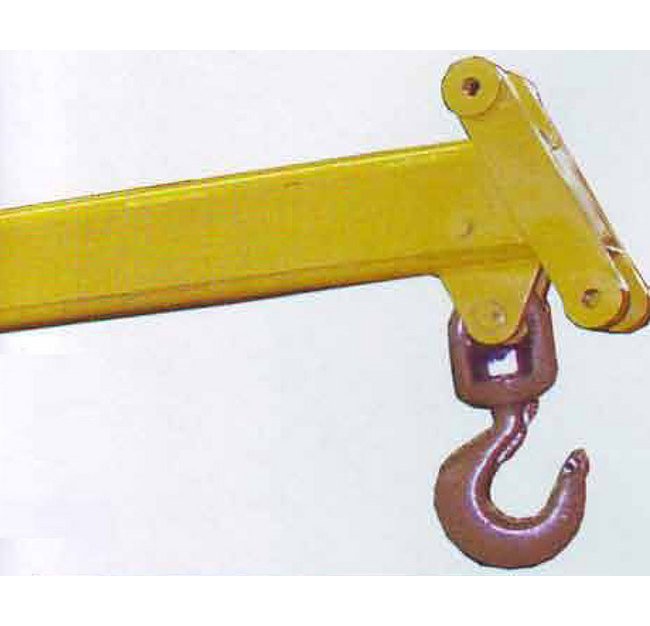

Optional Gooseneck Name
Gooseneck Boom Extension
Optional Gooseneck Optional Gooseneck Item
RBC-GN

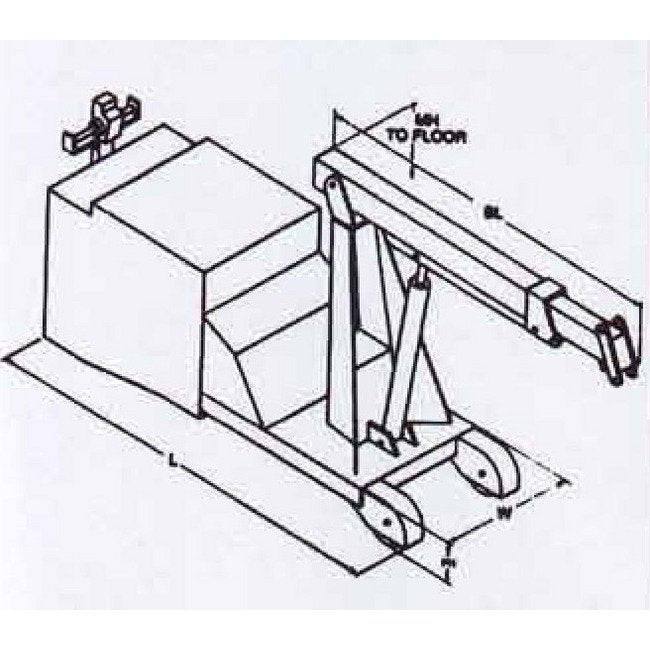

Specifications Boom Length Fully Adjustable Form
54 to 96 in
Specifications Capacity With Boom Extended
1500 lb
Specifications Capacity With Boom Retracted
3000 lb
Specifications Casters Rigid
8 x 2.5 in
Specifications Casters Swivel
6 x 2.5 in
Specifications Counterweight Not Included
2600 lb
Specifications Floor To Hook Height Boom Extended
18 in
Specifications Floor To Hook Height Boom Retracted
36 in

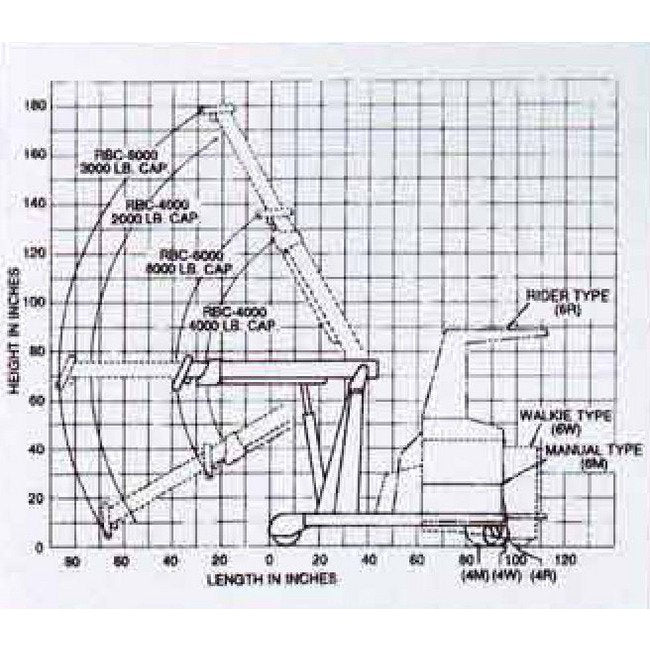

Specifications Maximum Lift Height With Boom Retracted
102 in
Specifications Maximum Lift Height With Extension Boom
144 in
Specifications Maximum Reach Beyond Wheels
82 in
Specifications Overall Length
68 in
Specifications Overall Length Walkie Type
85 in
Specifications Overall Mast Height
64 in
Specifications Shipping Weight
800 lb
Specifications Steering Angle
180 º
