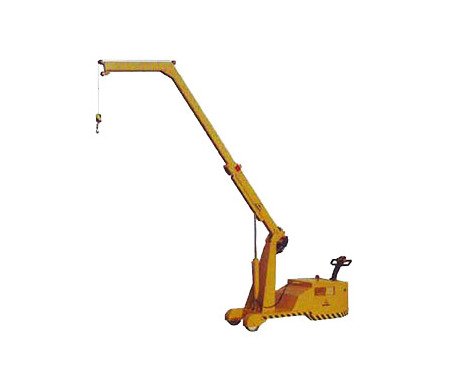

Heavy-Duty Reversible Boom Cranes
Heavy-Duty Reversible Boom Cranes
SKU:REV-ca5f19
Heavy-Duty Boom Cranes: Lift up to 20,000 lb, reach 82" beyond wheels, with 180º steering for superior maneuverability. Contact us to configure your own!
Regular price
$15,999.00
Regular price
Sale price
$15,999.00
Unit price
per
Initiate Order
Heavy-Duty Reversible Boom Cranes
$15,999.00
Quantity: 1
Claim Your Seller Account
Heavy-Duty Reversible Boom Cranes
$15,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy-Duty Reversible Boom Cranes redefine lifting capabilities with a maximum capacity of 20,000 lb when the boom is retracted and 10,000 lb when extended. Ideal for confined spaces, these cranes feature manual or optional powered lifting cylinders, self-propelled options for mobility, and a telescopic boom reaching up to 82" beyond the wheels. With 180º steering and rugged design, these cranes offer exceptional maneuverability and durability. Perfect for heavy-duty jobs, these cranes are now available with a remarkable 100,000 lb capacity. Contact us to configure your own today!
Product Specifications
General Description General Description
Telescopic boom provides added versatility!Manual hydraulic lifting cylinder is standard. Optional powered lifting cylinder available in electric, either battery (battery not included except on self-propelled models) or 110 volt A/C.Self-propelled available for maximum mobility and versatility on regular-duty models. Standard on heavy-duty models (10,000 lb. capacities & up).Clear reach for heavy jobs. Up to an astounding 82" boom reach beyond its wheels when extended.180º steering for incredible maneuverability! Built at only 34" inches wide for ease of passage through narrow doorways & aisles.Rugged design for long lifeRoller bearing wheels for easy movement and positioningReady to configure your own? Give us a call!Now available up to 100,000 pounds capacity!!
Note Note
A counterweight box is supplied with the RBC, but counterweights are not included, except for self-propelled units.Only RBC-3000 and under are available manually propelled.

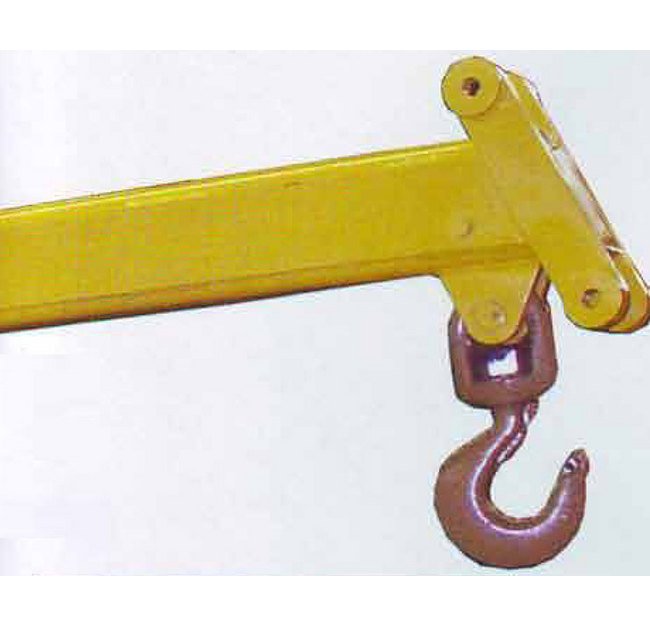

Optional Gooseneck Gooseneck Steering Angle
180 º
Optional Gooseneck Name
Gooseneck Boom Extension
Optional Gooseneck Optional Gooseneck Item
RBC-GN
Specifications Boom Length Fully Adjustable Form
72 to 120 in
Specifications Capacity With Boom Extended
10000 lb
Specifications Capacity With Boom Retracted
20000 lb
Specifications Casters Rigid
12 x 3.5 in
Specifications Counterweight Not Included
Units are only available self-propelled lb
Specifications Floor To Hook Height Boom Extended
5 in
Specifications Floor To Hook Height Boom Retracted
29 in
Specifications Maximum Lift Height With Boom Retracted
128 in
Specifications Maximum Lift Height With Extension Boom
170 in
Specifications Maximum Reach Beyond Wheels
82 in
Specifications Overall Length Riding Type
149 in
Specifications Overall Length Walkie Type
145 in
Specifications Overall Mast Height
89 in
Specifications Overall Mast Height Riding Type Only
89 in
Specifications Shipping Weight
14000 lb
Specifications Steering Angle
180 º
