Heavy-Duty Reversible Boom Cranes
Heavy-Duty Reversible Boom Cranes
SKU:REV-cc1fe7
Effortlessly lift and transport up to 10 tons with our versatile Heavy-Duty Reversible Boom Cranes. Ideal for heavy jobs with exceptional reach and maneuverability.
Regular price
$18,999.00
Regular price
Sale price
$18,999.00
Unit price
per
Initiate Order
Heavy-Duty Reversible Boom Cranes
$18,999.00
Quantity: 1
Claim Your Seller Account
Heavy-Duty Reversible Boom Cranes
$18,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

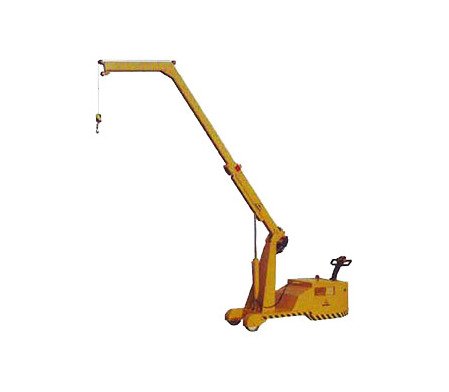

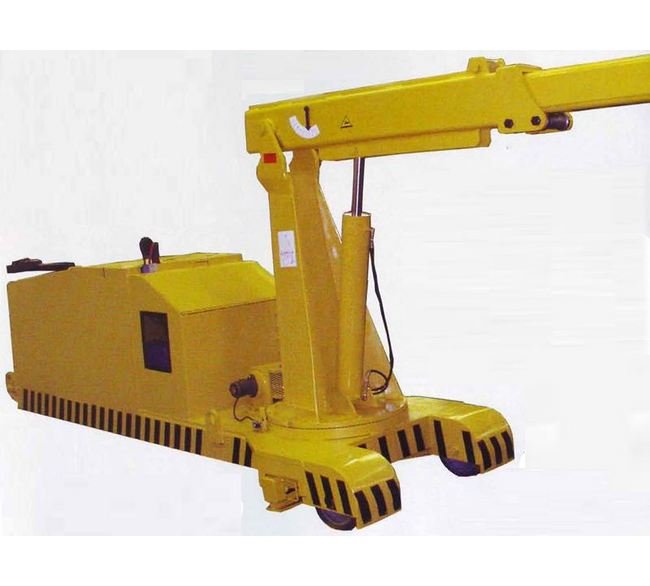

Upgrade your lifting capabilities with our Heavy-Duty Reversible Boom Cranes. Designed for efficiency and durability, these cranes can effortlessly transport up to 10 tons with ease. Featuring a telescopic boom for added versatility, manual hydraulic lifting cylinder, and an optional powered lifting cylinder, these cranes are perfect for reaching over and beyond obstacles in confined spaces. With a remarkable 82" boom reach beyond wheels when extended and 180º steering for superior maneuverability, our cranes offer incredible performance for heavy-duty tasks. Contact us now to configure your own customized solution!
Product Specifications
General Description General Description
Telescopic boom provides added versatility!Manual hydraulic lifting cylinder is standard. Optional powered lifting cylinder available in electric, either battery (battery not included except on self-propelled models) or 110 volt A/C.Self-propelled available for maximum mobility and versatility on regular-duty models. Standard on heavy-duty models (10,000 lb. capacities & up).Clear reach for heavy jobs. Up to an astounding 82" boom reach beyond its wheels when extended.180º steering for incredible maneuverability! Built at only 34" inches wide for ease of passage through narrow doorways & aisles.Rugged design for long lifeRoller bearing wheels for easy movement and positioningReady to configure your own? Give us a call!Now available up to 100,000 pounds capacity!!
Note Note
A counterweight box is supplied with the RBC, but counterweights are not included, except for self-propelled units.Only RBC-3000 and under are available manually propelled.

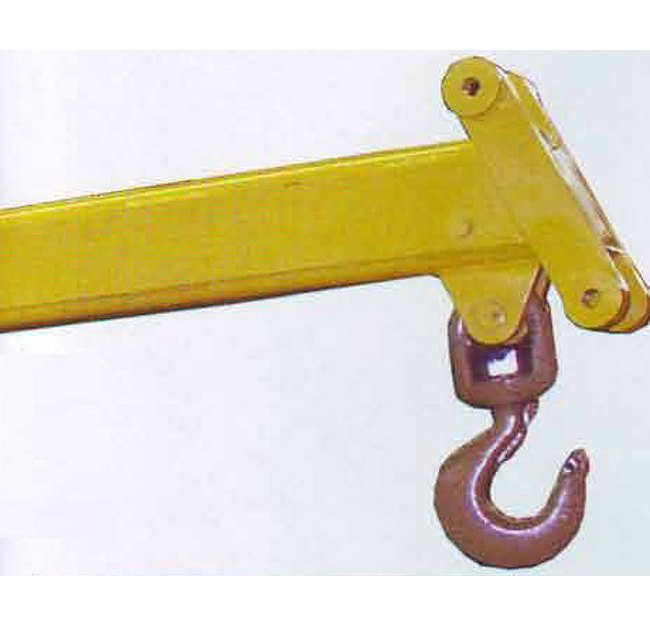

Optional Gooseneck Gooseneck Steering Angle
180 º
Optional Gooseneck Name
Gooseneck Boom Extension
Optional Gooseneck Optional Gooseneck Item
RBC-GN

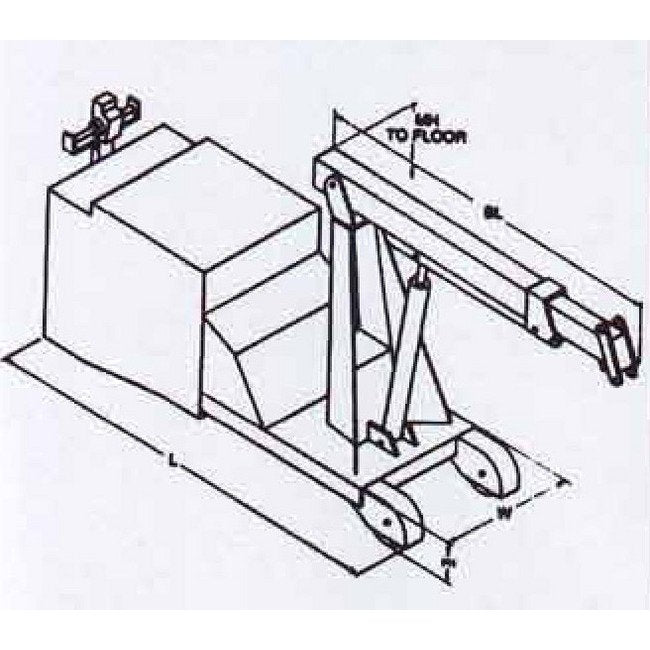

Specifications Boom Length Fully Adjustable Form
72 to 120 in
Specifications Capacity With Boom Extended
10000 lb
Specifications Capacity With Boom Retracted
20000 lb
Specifications Casters Rigid
12 x 3.5 in
Specifications Counterweight Not Included
Units are only available self-propelled lb
Specifications Floor To Hook Height Boom Extended
5 in
Specifications Floor To Hook Height Boom Retracted
29 in

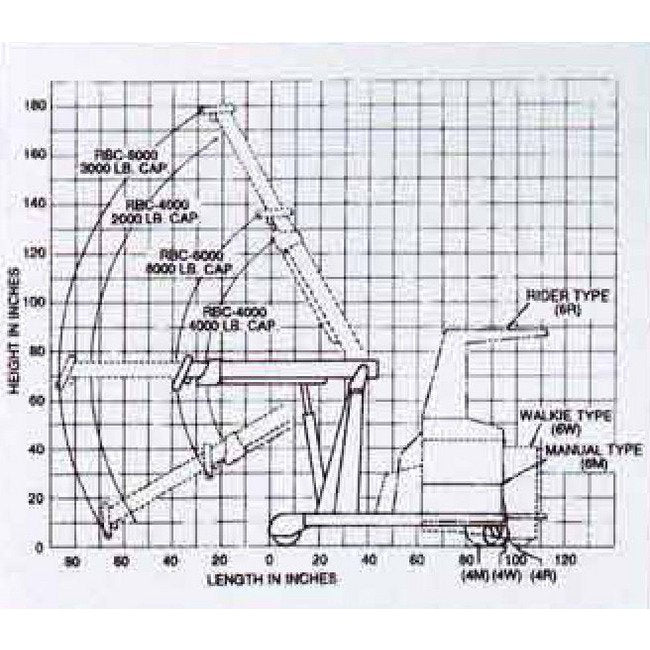

Specifications Maximum Lift Height With Boom Retracted
128 in
Specifications Maximum Lift Height With Extension Boom
170 in
Specifications Maximum Reach Beyond Wheels
82 in
Specifications Overall Length Riding Type
149 in
Specifications Overall Length Walkie Type
145 in
Specifications Overall Mast Height
89 in
Specifications Overall Mast Height Riding Type Only
89 in
Specifications Shipping Weight
14000 lb
Specifications Steering Angle
180 º
