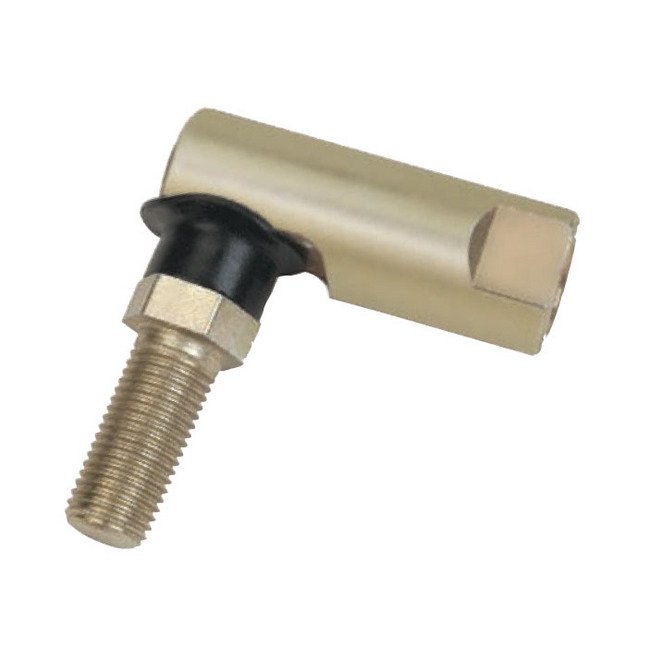

• Heavy-Duty Right Hand Rod End - Image 1
  • Heavy-Duty Right Hand Rod End - Image 2
1 2
Lexco Cable Manufacturing →

Heavy-Duty Right Hand Rod End

Heavy-Duty Right Hand Rod End

PUS-92eb81

Reliable heavy-duty rod end for medium to heavy-duty applications, with steel body, case-hardened ball stud, and rubber grommet seal.

$39.99
$39.99
Sale

Initiate Order

Heavy-Duty Right Hand Rod End

Heavy-Duty Right Hand Rod End

$39.99

Quantity: 1

Claim Your Seller Account

Heavy-Duty Right Hand Rod End

Heavy-Duty Right Hand Rod End

$39.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Heavy-Duty Right Hand Rod End from R-G Ball Joints is a top choice for medium to heavy-duty ball joint applications. Featuring a steel body and ball stud design, this rod end ensures durability and reliability. The case-hardened ball stud provides extended wear life, while the rubber grommet seals out contaminants. With a temperature range of -30 to 250°F, this rod end is suitable for various integral applications in industries like construction, lawn and garden, and industrial equipment. Customizable sizes and assemblies are available, meeting SAE specification J490 (Type G/Style 2) for quality assurance.

Product Specifications

Applications 0
Various integral ball joint applications, including:Lawn and garden equipmentConstructionIndustrial equipment
Features 0
Steel body and ball stud "staked" design offers an economical solution to medium to heavy-duty ball joint applicationsBall stud is case hardened for extended wear lifeRubber grommet provides a durable seal against contaminantsCan be used in a wide range of temperatures: -30 ºF - 250 ºF (-34 ºC - 121 ºC)Custom sizes and assemblies can be built to your specifications, including: - male to male or female to female - right or left-handed threadsMany metric sizes available - consult factoryMeets SAE specification J490 (Type G/Style 2)
Material 0
Ball Stud - Low Carbon Steel, case Hardened for Extended Wear Life, Zinc Plated, Yellow Dichromate TreatedBody - Low Carbon Steel, Zinc Plated, Yellow Dichromate Treated

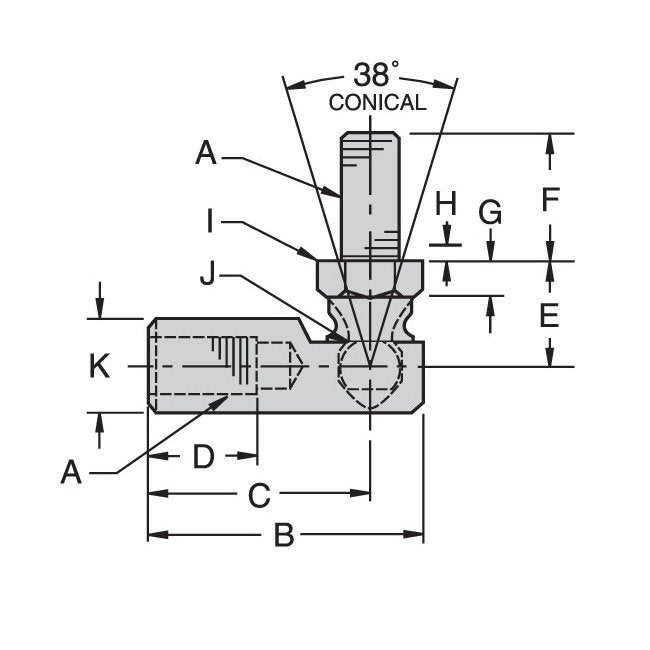

Specifications A Unf
3/8-24 "
Specifications B 0020
1.687 "
Specifications C 0020
1.375 "
Specifications D Min
0.750 "
Specifications E 0020
0.687 "
Specifications Force To Remove Ball Stud
1700 lb
Specifications F 0020
0.875 "
Specifications G Ref
0.187 "
Specifications H Ref
0.094 "
Specifications I Ref
0.500 "
Specifications J Ref
0.287 "
Specifications K Ref
0.625 "
Specifications Note
Ball Joint can be ordered without the grommet by dropping the "G" suffix. Example: R108LHR103G size is supplied with a wrap around grommet.
Specifications Temperature Range
-30 to 250 ºF | -34 to 121 ºC
Specifications Tensile Shear Strength
2437 lb
Specifications Wrench Flat Length
0.312 "
Specifications Wrench Flat Width
0.500 "
CAGE
0T9L4
NAICS
332510
PSC
4030
