Heavy Duty Right Hand Rod End Joint

Name: Heavy Duty Right Hand Rod End Joint
Brand: Lexco Cable Manufacturing
SKU: PUS-c90063
Price: 23.99 USD
Availability: OutOfStock

SKU:PUS-c90063

Durable steel rod end joint with rubber grommet seal for heavy-duty applications. Meets SAE J490 standards.

$23.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

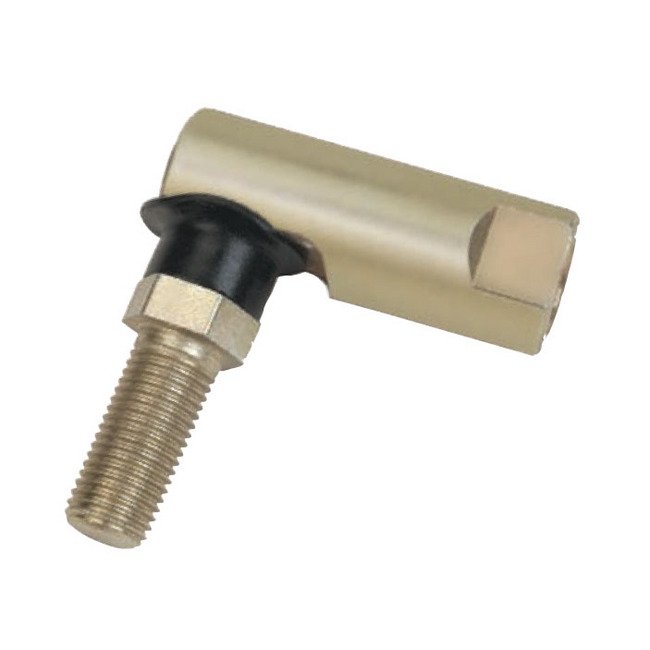

The Heavy Duty Right Hand Rod End Joint from the R-G Ball Joints series is designed for medium to heavy-duty applications. Featuring a steel body and ball stud staked design, this product offers durability and reliable performance. The case-hardened ball stud ensures extended wear life, while the rubber grommet provides a secure seal against contaminants. With custom sizing options available, including right-handed threads and various assemblies, this ball joint meets SAE specification J490 (Type G/Style 2) for quality assurance.

Product Specifications

Applications 0

Various integral ball joint applications, including:Lawn and garden equipmentConstructionIndustrial equipment

Features 0

Steel body and ball stud "staked" design offers an economical solution to medium to heavy-duty ball joint applicationsBall stud is case hardened for extended wear lifeRubber grommet provides a durable seal against contaminantsCan be used in a wide range of temperatures: -30 ÂºF - 250 ÂºF (-34 ÂºC - 121 ÂºC)Custom sizes and assemblies can be built to your specifications, including: - male to male or female to female - right or left-handed threadsMany metric sizes available - consult factoryMeets SAE specification J490 (Type G/Style 2)

Material 0

Ball Stud - Low Carbon Steel, case Hardened for Extended Wear Life, Zinc Plated, Yellow Dichromate TreatedBody - Low Carbon Steel, Zinc Plated, Yellow Dichromate Treated

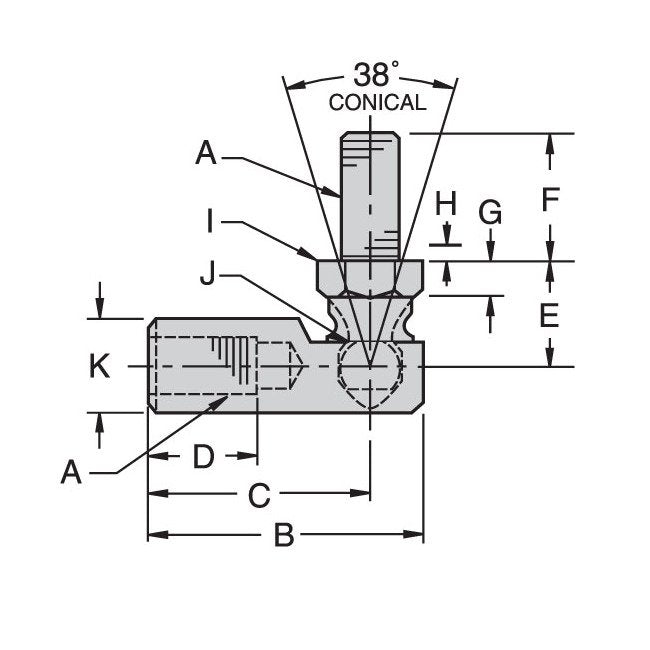

Specifications A Unf

5/16-24 "

Specifications B 0020

1.406 "

Specifications C 0020

1.125 "

Specifications D Min

0.562 "

Specifications E 0020

0.531 "

Specifications Force To Remove Ball Stud

1282 lb

Specifications F 0020

0.687 "

Specifications G Ref

0.156 "

Specifications H Ref

0.094 "

Specifications I Ref

0.437 "

Specifications J Ref

0.232 "

Specifications K Ref

0.500 "

Specifications Note

Ball Joint can be ordered without the grommet by dropping the "G" suffix. Example: R108LHR103G size is supplied with a wrap around grommet.

Specifications Temperature Range

-30 to 250 ÂºF | -34 to 121 ÂºC

Specifications Tensile Shear Strength

1587 lb

Specifications Wrench Flat Length

0.281 "

Specifications Wrench Flat Width

0.437 "

CAGE

0T9L4

NAICS

332510

PSC

4030
