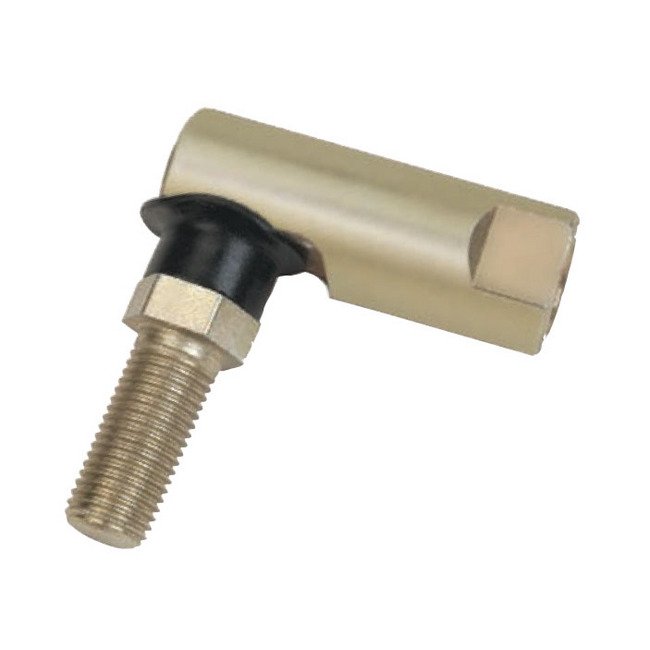

Heavy-Duty Right Hand Rod End with Rubber Grommet

Heavy-Duty Right Hand Rod End with Rubber Grommet

PUS-116d2b

Durable Heavy-Duty Right Hand Rod End for medium to heavy-duty applications, featuring steel body and ball stud staked design with rubber grommet seal. Meets SAE J490 standards.

$29.99
$29.99
Sale

Initiate Order

Heavy-Duty Right Hand Rod End with Rubber Grommet

Heavy-Duty Right Hand Rod End with Rubber Grommet

$29.99

Quantity: 1

Claim Your Seller Account

Heavy-Duty Right Hand Rod End with Rubber Grommet

Heavy-Duty Right Hand Rod End with Rubber Grommet

$29.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Heavy-Duty Right Hand Rod End from the R-G Ball Joints line is designed for medium to heavy-duty applications, featuring a steel body and ball stud staked design for durability. With a case-hardened ball stud for extended wear life and a rubber grommet seal to protect against contaminants, this rod end offers reliability in various integral applications like lawn equipment, construction, and industrial machinery. Meeting SAE specification J490 (Type G/Style 2), this rod end ensures performance and longevity in demanding environments.

Product Specifications

Applications 0
Various integral ball joint applications, including:Lawn and garden equipmentConstructionIndustrial equipment
Features 0
Steel body and ball stud "staked" design offers an economical solution to medium to heavy-duty ball joint applicationsBall stud is case hardened for extended wear lifeRubber grommet provides a durable seal against contaminantsCan be used in a wide range of temperatures: -30 ºF - 250 ºF (-34 ºC - 121 ºC)Custom sizes and assemblies can be built to your specifications, including: - male to male or female to female - right or left-handed threadsMany metric sizes available - consult factoryMeets SAE specification J490 (Type G/Style 2)
Material 0
Ball Stud - Low Carbon Steel, case Hardened for Extended Wear Life, Zinc Plated, Yellow Dichromate TreatedBody - Low Carbon Steel, Zinc Plated, Yellow Dichromate Treated

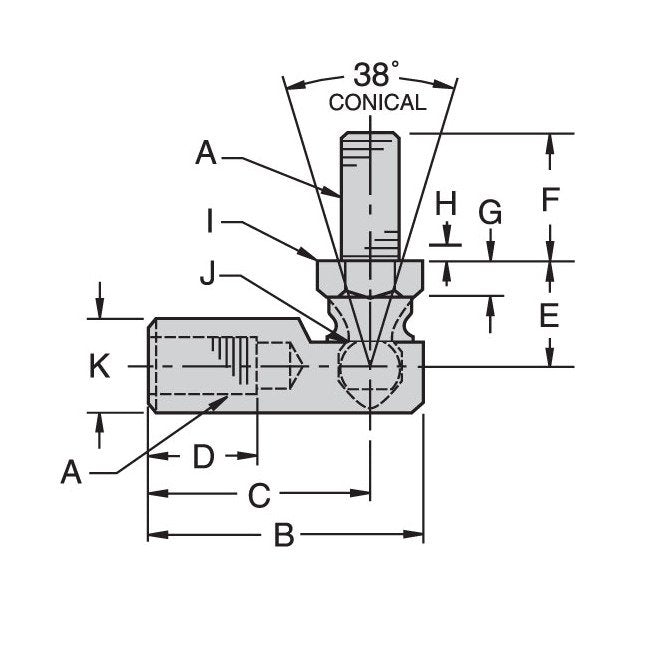

Specifications A Unf
1/4-28 "
Specifications B 0020
1.219 "
Specifications C 0020
0.969 "
Specifications D Min
0.500 "
Specifications E 0020
0.469 "
Specifications Force To Remove Ball Stud
1005 lb
Specifications F 0020
0.562 "
Specifications G Ref
0.125 "
Specifications H Ref
0.094 "
Specifications I Ref
0.375 "
Specifications J Ref
0.193 "
Specifications K Ref
0.437 "
Specifications Note
Ball Joint can be ordered without the grommet by dropping the "G" suffix. Example: R108LHR103G size is supplied with a wrap around grommet.
Specifications Temperature Range
-30 to 250 ºF | -34 to 121 ºC
Specifications Tensile Shear Strength
882 lb
Specifications Wrench Flat Length
0.281 "
Specifications Wrench Flat Width
0.375 "
