Heavy Duty Running Gear for W Beams - Series 450
Heavy Duty Running Gear for W Beams - Series 450
SKU:CRA-1a1d76
Enhance crane systems with Series 450 Heavy Duty Running Gear for W Beams. Hardened steel rollers, 450 lb load capacity, and versatile design. Ideal for demanding industrial applications.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Heavy Duty Running Gear for W Beams - Series 450
$349.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Running Gear for W Beams - Series 450
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

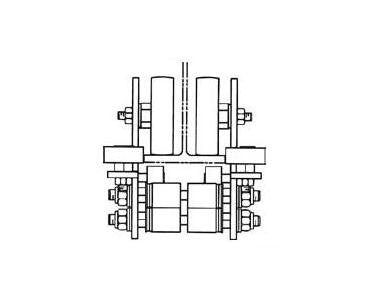

Upgrade your crane system with the Series 450 Heavy Duty Running Gear for W Beams. This running gear features hardened steel main rollers with sealed ball bearings, zinc-plated horizontal guide and anti-lift rollers, and independent side shield removal design. With a Maximum Load of 450 lb and a Main Roller Diameter of 2.5 inches, this running gear ensures smooth and efficient operation in a wide temperature range (-22 to 220 °F). Speed up to 500 fpm and compatible with W4 x 13 in beams.
Product Specifications
Specifications Beam Size
W4 x 13 in
Specifications Main Roller Diameter
2.5 in | 62 mm
Specifications Maximum Load
450 lb | 204 kg
Specifications Operating Temperature
-22 to 220 ºF
Specifications Running Gear Type
Steel Main Rollers, Crowned, with Horizontal Guide & Anti-Lift Rollers
Specifications Speed
500 fpm
Specifications Weight
27.3 lb | 12.4 kg
