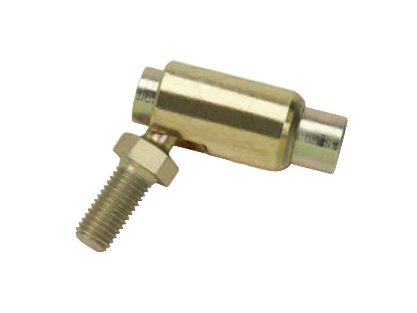

• Heavy Duty S Ball Joint Assembly - Image 1
  • Heavy Duty S Ball Joint Assembly - Image 2
1 2
Lexco Cable Manufacturing →

Heavy Duty S Ball Joint Assembly

Heavy Duty S Ball Joint Assembly

PUS-fe81ef

Durable Heavy Duty S Ball Joint with quick disconnect assembly for easy maintenance. Meets SAE J490 specification.

$29.99
$29.99
Sale

Initiate Order

Heavy Duty S Ball Joint Assembly

Heavy Duty S Ball Joint Assembly

$29.99

Quantity: 1

Claim Your Seller Account

Heavy Duty S Ball Joint Assembly

Heavy Duty S Ball Joint Assembly

$29.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Heavy Duty S Ball Joint Assembly is a reliable solution for light to medium-duty linkage applications in various industries. Featuring a steel ball stud, sleeve, and body, this assembly offers durability and high performance. With quick disconnect assembly for easy maintenance and access, it is suitable for cable assemblies, industrial applications, and more. Meeting SAE J490 specification, including type S/style 1 and type S/style 2, this ball joint assembly ensures quality and compliance.

Product Specifications

Applications 0
Light to medium-duty linkage applications, including:Cable assembliesLight industrial applicationsAgricultural, lawn and garden equipmentRacing (throttle links)
Features 0
Three different configurations, all with steel ball stud, sleeve and body to match your load and cost requirementsQuick pull back, "no tools required" disconnect assembly provides easier access, faster maintenanceCan be used in a wide range of temperatures: -60 ºF - 250 ºF (-51 ºC - 121 ºC) Right and left-handed versions availableCustom sizes and assemblies can be built to your specificationsS/SS Series meets SAE J490 specification (S: type S/style 1, SS: type S/style 2)
Material 0
Ball Stud - Low Carbon Steel, Heat Treated, Zinc Plated, Yellow Dichromate TreatedSleeve - Low Carbon Steel, Zinc Plated, Yellow Dichromate TreatedBody: S and SS - Low Carbon SteelBody: SC - Low Carbon Steel, Heat Treated, Zinc Plated, Yellow Dichromate TreatedSpring: S and SS - Stainless SteelSpring Clip: SC - Hardened Spring Steel

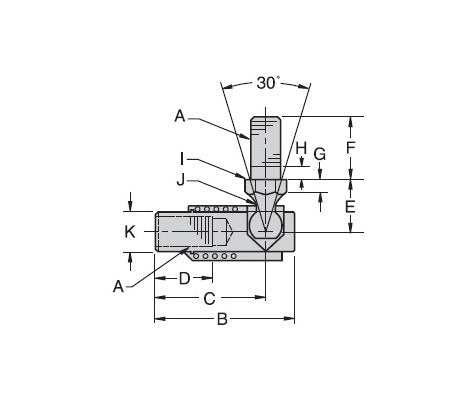

Specifications A Unf
10-32 "
Specifications Ball Diameter Ref
0.253 "
Specifications B 0020
1.094 "
Specifications C 0020
0.906 "
Specifications D Min
0.437 "
Specifications E 0020
0.437 "
Specifications F 0020
0.437 "
Specifications G Ref
0.125 "
Specifications H Ref
0.062 "
Specifications I Ref
0.312 "
Specifications J Ref
0.171 "
Specifications K Ref
0.312 "
Specifications Temperature Range
-60 to 250 ºF | -51 to 121 ºC
Specifications Type
S
CAGE
0T9L4
NAICS
332510
PSC
4030
