Heavy-Duty SC Ball Joint Assembly

Heavy-Duty SC Ball Joint Assembly

PUS-d14911

Durable, high-performance SC Ball Joint Assembly with quick disconnect feature. Customizable sizes, meets SAE J490 specs.

$29.99
$29.99
Sale

Initiate Order

Heavy-Duty SC Ball Joint Assembly

Heavy-Duty SC Ball Joint Assembly

$29.99

Quantity: 1

Claim Your Seller Account

Heavy-Duty SC Ball Joint Assembly

Heavy-Duty SC Ball Joint Assembly

$29.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

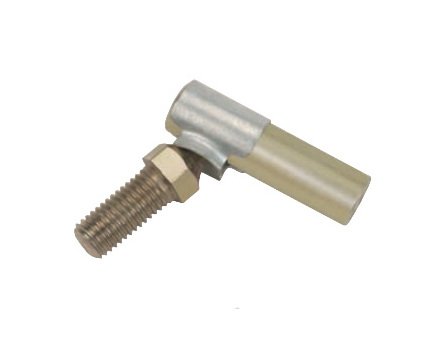

The Heavy-Duty SC Ball Joint Assembly is engineered for durability and performance in a range of applications. Featuring a steel ball stud, sleeve, and body, this quick disconnect assembly offers easy maintenance without the need for tools. With a temperature range of -60 to 250 °F (-51 to 121 °C), this ball joint is suitable for various environments. Customizable sizes and configurations cater to specific needs, while meeting SAE J490 specifications ensures quality and reliability.

Product Specifications

Applications 0
Light to medium-duty linkage applications, including:Cable assembliesLight industrial applicationsAgricultural, lawn and garden equipmentRacing (throttle links)
Features 0
Three different configurations, all with steel ball stud, sleeve and body to match your load and cost requirementsQuick pull back, "no tools required" disconnect assembly provides easier access, faster maintenanceCan be used in a wide range of temperatures: -60 ºF - 250 ºF (-51 ºC - 121 ºC) Right and left-handed versions availableCustom sizes and assemblies can be built to your specificationsS/SS Series meets SAE J490 specification (S: type S/style 1, SS: type S/style 2)
Material 0
Ball Stud - Low Carbon Steel, Heat Treated, Zinc Plated, Yellow Dichromate TreatedSleeve - Low Carbon Steel, Zinc Plated, Yellow Dichromate TreatedBody: S and SS - Low Carbon SteelBody: SC - Low Carbon Steel, Heat Treated, Zinc Plated, Yellow Dichromate TreatedSpring: S and SS - Stainless SteelSpring Clip: SC - Hardened Spring Steel

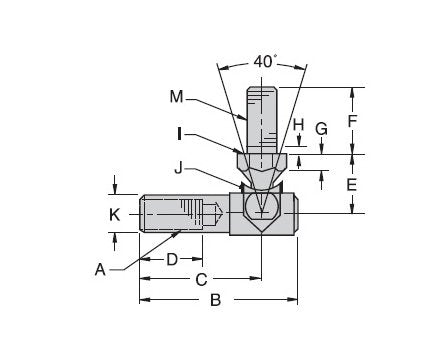

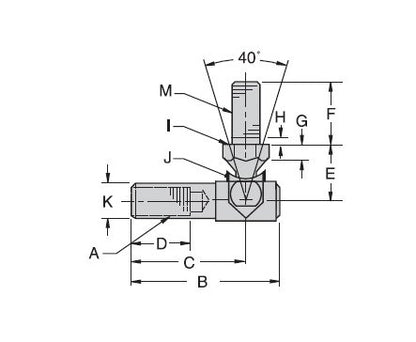

Specifications A Unf
10-32 "
Specifications Ball Diameter Ref
0.250 "
Specifications B 0020
1.156 "
Specifications C 0020
0.875 "
Specifications D Min
0.484 "
Specifications E 0020
0.437 "
Specifications F 0020
0.437 "
Specifications G Ref
0.187 "
Specifications H Ref
0.078 "
Specifications I Ref
0.312 "
Specifications J Ref
0.135 "
Specifications K Ref
0.312 "
Specifications M Unf
10-32 "
Specifications Temperature Range
-60 to 250 ºF | -51 to 121 ºC
Specifications Type
SC
CAGE
0T9L4
NAICS
332510
PSC
4030
