Heavy-Duty SD Series Electromagnetic Chuck Controller

Name: Heavy-Duty SD Series Electromagnetic Chuck Controller
Brand: Magnetool, Inc.
SKU: SDS-69e502
Price: 899.99 USD
Availability: OutOfStock

SKU:SDS-69e502

Powerful SD Series Chuck Controller with 3000W, 0-110V output, and advanced demagnetizing features for industrial precision.

$899.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

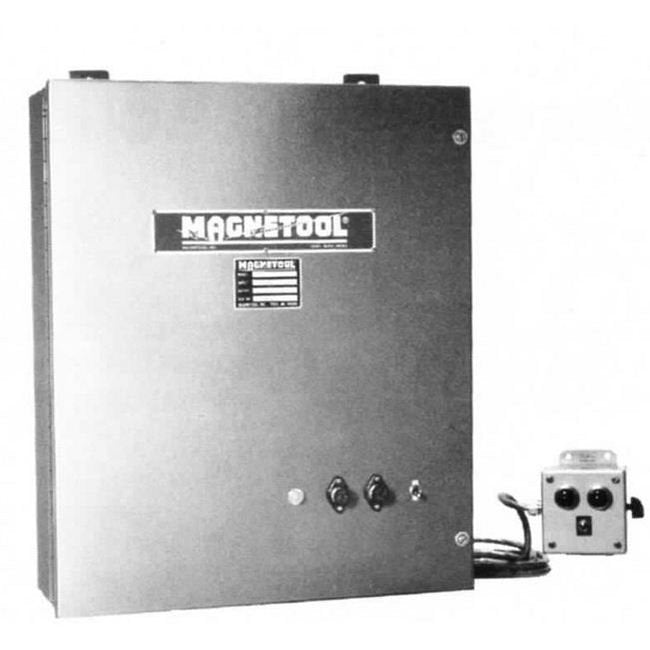

The Heavy-Duty SD Series Automatic Electromagnetic Chuck Controller is designed for applications requiring high chuck demagnetization levels and chucks with high wattage ratings. With a power rating of 3000 W and variable output voltage of 0 to 110 V, this controller offers precise control and operation. The compact main enclosure, which can be rear or wall-mounted, houses advanced features like the 'Residual Hold' feature and an Electronic Step-Down Demagnetizing Cycle for efficient performance. The included remote control unit with indicating lamps ensures ease of operation and monitoring, making it ideal for industrial settings.

Product Specifications

Additional Information 0

The green light indicates power is on. The red light indicates the chuck has power. When the control switch is turned to "Mag-Off" the red light will gradually fade out. The operator can then remove the work with ease. The variable power switch on the side can be dialed for full power to residual.

Manufacturing Notes 0

0 to 230 VDC output available on request.

Specifications Ac Input Voltage

240 V | 480 V

Specifications Dc Output Voltage

0 to 110 V

Specifications Features

Specifications Input Frequency

60 Hz

Specifications Main Enclosure Depth

11 in

Specifications Main Enclosure Height

24 in

Specifications Main Enclosure Width

20 in

Specifications Power

3000 W
