Heavy-Duty Self-Dumping Hoppers
Heavy-Duty Self-Dumping Hoppers
SKU:MAT-41618f
Versatile and durable self-dumping hoppers for efficient material handling.
Regular price
$1,499.99
Regular price
Sale price
$1,499.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

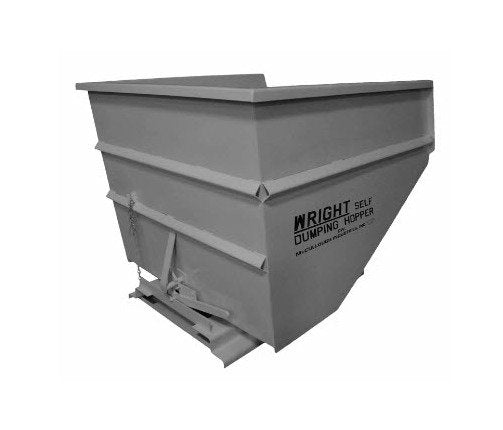

Elevate your bulk material handling efficiency with the Wright GEN II line of self-dumping hoppers. Built to withstand heavy-duty use, these hoppers come in over 30 models ranging from ¼ to 6 cubic yards. Crafted with robust steel construction, a 3-inch fork opening, and a low center of gravity, these hoppers ensure stability and durability. With dimensions like an overall height of 55 inches, a dump clearance height of 73 inches, and a dump angle of 32 degrees, these hoppers provide optimal functionality for industrial settings. Invest in reliability and versatility with the Wright GEN II self-dumping hoppers.

Product Specifications
Specifications Base Length
54 Inch
Specifications Base Width
36.5 Inch
Specifications Bumper Release
No
Specifications Capacity
3 CU YD
Specifications Center Of Gravity
30.5 Inch
Specifications Container Length
70.5 Inch
Specifications Dump Angle
32 Degrees
Specifications Dump Clearance Bottom
10 Inch
Specifications Dump Clearance Height
73 Inch
Specifications Dump Clearance Length
93.75 Inch
Specifications Fork Opening
3" x 28.5" Text
Specifications Front Clearance
15 Inch
Specifications Note
All Dimensions are approxiamate some dimensions may vary slightly per hopper.
Specifications Overall Height
55 Inch
Specifications Overall Length
70.5 Inch
Specifications Overall Width
57.75 Inch
Specifications Pouring Lip
20 Inch
Specifications Weight Approx
704 pounds
