Heavy Duty Self-Propelled Hydraulic Floor Crane
Heavy Duty Self-Propelled Hydraulic Floor Crane
SKU:POR-676f73
Experience the power and flexibility of our heavy-duty hydraulic floor crane - ideal for versatile lifting applications.
Regular price
$4,999.99
Regular price
Sale price
$4,999.99
Unit price
per
Initiate Order
Heavy Duty Self-Propelled Hydraulic Floor Crane
$4,999.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Self-Propelled Hydraulic Floor Crane
$4,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

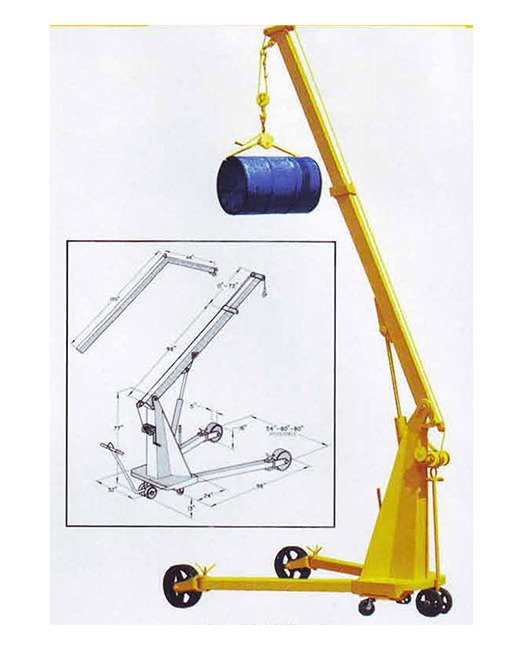

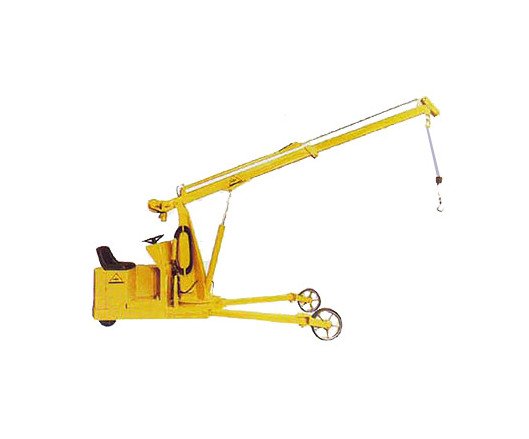

The Port-O-Giant Hydraulic Floor Crane is a heavy-duty solution with a 6,000 lb capacity and impressive lift heights up to 26 ft. Its gooseneck boom offers unparalleled flexibility, while the adjustable legs provide stability in various settings. Equipped with multiple power options including electric, gasoline, and LPG, this crane's telescopic boom enhances adaptability. Perfect for maneuvering in tight spaces with 180° steering, it ensures efficient and simultaneous movements for seamless operations. Meet rigorous standards with the standard manual model or opt for the self-propelled version, available with different power packs.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
General Description General Description
Telescopic boom increases working adaptability.180º steering makes maneuvering in tight areas easy.Four powered lifting options available; battery, 220/440 volt A/C, LPC or gasoline engine. The hydraulic system controlling powered actions enables all movements to be made simultaneously. Standard model equipped with manual hand pump.Self-propelled available with choice of three power packs (gasoline, LPC engine or battery).
Note Note
Specifications are for standard manual units
Specifications Approx Shipping Weight
1500 lb
Specifications Capacity
6000 lb
Specifications Mast Height
77 in

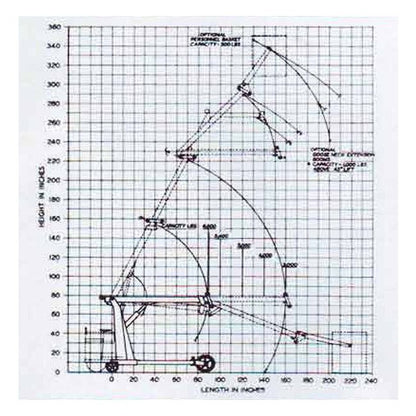

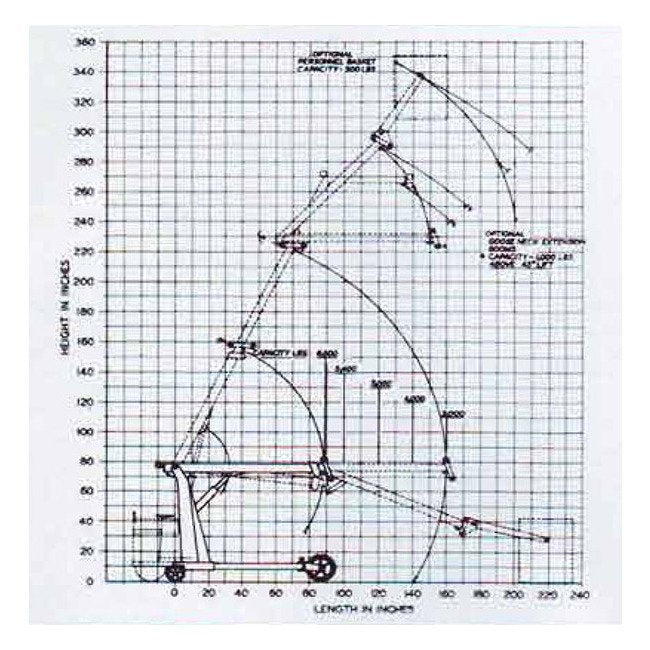

Specifications Maximum Lift Height Gooseneck Attachment
26 ft
Specifications Maximum Lift Height Gooseneck Boom
22 ft
Specifications Maximum Lift Height Personnel Basket
26 ft
Specifications Maximum Lift Height Standard Boom Extended
18 ft
Specifications Maximum Lift Height Standard Boom Retracted
13 ft
Specifications Maximum Reach Gooseneck Attachment
17 ft
Specifications Maximum Reach Gooseneck Boom
15 ft
Specifications Maximum Reach Personnel Basket
20 ft
Specifications Maximum Reach Standard Boom Extended
12 ft
Specifications Maximum Reach Standard Boom Retracted
5 ft
Specifications Minimum Floor To Hook Height Standard Boom Extend
0 in
Specifications Minimum Floor To Hook Height Standard Boom Retrac
34 in
Specifications Overall Length Manually Propelled
96 in
Specifications Overall Length Self Propelled
122 in
Specifications Overall Width
Legs are adjustable to 34", 60", or 80".They can be folded beyond adjustment to 32".
Specifications Power Option
Electric | Gasolene | LPG
Specifications Standard Boom Length
Fully adjustable from 8' to 14'
Specifications Steering Angle
180 º
Specifications Voltage Ac
220 V | 440 V
Specifications Wheels Drive Self Propelled Units
4 x 10
Specifications Wheels Front Two
5 x 16
Specifications Wheels Rear Dual Manually Operated Units
2.5 x 10
