Heavy Duty Series 450 Running Gear for S Beam Cranes

Name: Heavy Duty Series 450 Running Gear for S Beam Cranes
Brand: Clutch Engineering
SKU: CRA-abd885
Price: 359.99 USD
Availability: OutOfStock

SKU:CRA-abd885

Enhance crane performance with Heavy Duty Series 450 Running Gear. Durable steel rollers, sealed ball bearings, and easy maintenance design.

$359.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

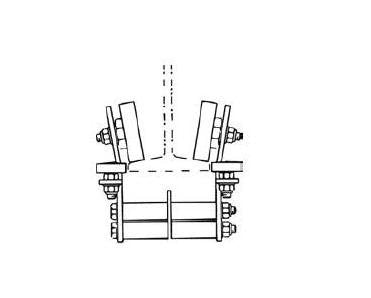

Upgrade your crane efficiency with the Heavy Duty Series 450 Running Gear designed for S Beams. This kit includes (4) side shields with durable steel rollers, galvanized spacers, and stainless steel fasteners ensuring long-lasting performance in harsh conditions. The main rollers feature hardened steel and sealed ball bearings, while the anti-lift rollers provide smooth operation. With a maximum load capacity of 770 lb and a speed rating of 500 fpm, this running gear is suited for heavy-duty applications. The steel main rollers, polyurethane tires, and horizontal guide rollers ensure smooth movement and precise control. Designed for easy maintenance, the independent side shield removal feature enhances accessibility and simplifies upkeep.

Product Specifications

Specifications Beam Size

S6 x 12.5 in

Specifications Main Roller Diameter

4 in | 100 mm

Specifications Maximum Load

770 lb | 350 kg

Specifications Operating Temperature

-22 to 220 ÂºF

Specifications Running Gear Type

Steel Main Rollers, Polyurethane Tire, with Horizontal Guide Rollers

Specifications Speed

500 fpm

Specifications Weight

31.3 lb | 14.2 kg
