Heavy Duty Series 450 Running Gear for S Beams
Heavy Duty Series 450 Running Gear for S Beams
SKU:CRA-0b4268
Durable Heavy Duty Series 450 Running Gear for S Beams, ideal for crane control & electrification. Robust design, high load capacity, and easy maintenance.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Heavy Duty Series 450 Running Gear for S Beams
$299.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Series 450 Running Gear for S Beams
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

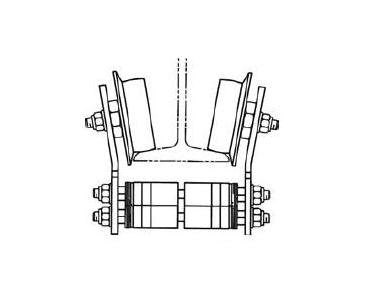

The Heavy Duty Series 450 Running Gear for S Beams is a robust solution designed for crane control and electrification applications. Featuring (4) side shields with hardened steel main rollers and zinc-plated anti-lift rollers with sealed ball bearings, this running gear ensures smooth and efficient operation in challenging environments. With a weight capacity of 450 lb, a maximum load of 204 kg, and a speed rating of 500 fpm, this system is built to handle heavy-duty tasks reliably. The main rollers have a diameter of 2.5 inches, and the gear is compatible with S6 x 12.5-inch beams. Additionally, the running gear is engineered for easy side shield removal, enhancing maintenance convenience and reducing downtime.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Beam Size
S6 x 12.5 in
Specifications Main Roller Diameter
2.5 in | 62 mm
Specifications Maximum Load
450 lb | 204 kg
Specifications Operating Temperature
-22 to 220 ºF
Specifications Running Gear Type
Steel Main Rollers, Flanged, without Anti-Lift Rollers
Specifications Speed
500 fpm
Specifications Weight
24.8 lb | 11.2 kg
