Heavy Duty Series 450 Running Gear for S Beams
Heavy Duty Series 450 Running Gear for S Beams
SKU:CRA-4d11ee
Durable Heavy Duty Running Gear for S Beams, max load 770 lb, designed for industrial use
Regular price
$239.99
Regular price
Sale price
$239.99
Unit price
per
Initiate Order
Heavy Duty Series 450 Running Gear for S Beams
$239.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Series 450 Running Gear for S Beams
$239.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

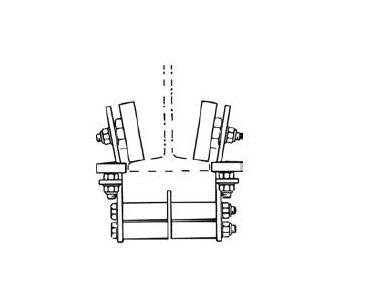

The Heavy Duty Series 450 Running Gear for S Beams is a robust solution designed for crane control and electrification systems. This running gear set includes four side shields with durable steel main rollers and anti-lift rollers featuring sealed ball bearings for enhanced longevity and smooth operation. With a maximum load capacity of 770 lb and a main roller diameter of 4 inches, this running gear is built to withstand demanding industrial environments. The steel main rollers, polyurethane tires, and horizontal guide rollers ensure reliable performance at speeds up to 500 fpm. Additionally, the running gear is designed for easy side shield removal, providing convenient maintenance and installation for heavy-duty applications.
Product Specifications
Specifications Beam Size
S6 x 17.25 in
Specifications Main Roller Diameter
4 in | 100 mm
Specifications Maximum Load
770 lb | 350 kg
Specifications Operating Temperature
-22 to 220 ºF
Specifications Running Gear Type
Steel Main Rollers, Polyurethane Tire, with Horizontal Guide Rollers
Specifications Speed
500 fpm
Specifications Weight
31.3 lb | 14.2 kg
