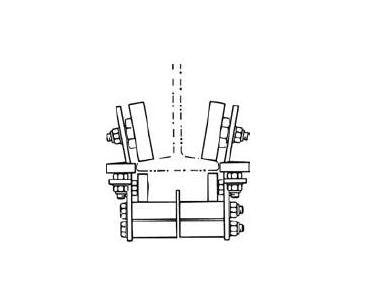

Heavy Duty Series 450 Running Gear for S Beams
Heavy Duty Series 450 Running Gear for S Beams
SKU:CRA-8ed81d
Heavy Duty running gear for S Beams with steel main rollers, anti-lift rollers, galvanized spacers. Max load: 770 lb, Speed: 500 fpm.
Regular price
$349.00
Regular price
Sale price
$349.00
Unit price
per
Initiate Order
Heavy Duty Series 450 Running Gear for S Beams
$349.00
Quantity: 1
Claim Your Seller Account
Heavy Duty Series 450 Running Gear for S Beams
$349.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy Duty Series 450 Running Gear for S Beams is a robust solution designed for optimal crane control and electrification in heavy-duty industrial applications. This running gear set includes (4) side shields equipped with hardened steel main rollers, zinc-plated anti-lift rollers, galvanized steel spacers, and stainless steel fasteners for durability. With a maximum load capacity of 770 lb (350 kg) and a main roller diameter of 4 inches (100 mm), it ensures reliable performance at speeds up to 500 fpm. Operating smoothly in temperatures ranging from -22 to 220 °F, this running gear is built to withstand demanding operational conditions. The design allows for easy independent side shield removal, enhancing maintenance efficiency.
Product Specifications
Specifications Beam Size
S15 x 42.9 in
Specifications Main Roller Diameter
4 in | 100 mm
Specifications Maximum Load
770 lb | 350 kg
Specifications Operating Temperature
-22 to 220 ºF
Specifications Running Gear Type
Steel Main Rollers, Polyurethane Tire, with Horizontal Guide & Anti-Lift Rollers
Specifications Speed
500 fpm
Specifications Weight
33.7 lb | 15.3 kg
