Heavy Duty Series 450 Running Gear for W Beams
Heavy Duty Series 450 Running Gear for W Beams
SKU:CRA-9e120c
Heavy Duty running gear for W beams with steel main rollers, polyurethane tire, and high load capacity. Suitable for industrial crane control applications.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
Heavy Duty Series 450 Running Gear for W Beams
$399.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Series 450 Running Gear for W Beams
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

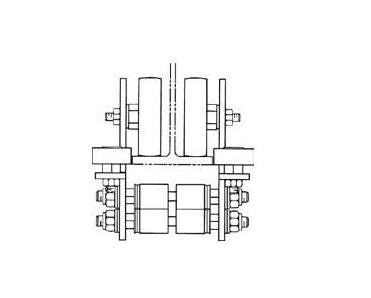

The Heavy Duty Series 450 Running Gear for W Beams is a robust solution designed for crane control applications. It includes (4) side shields with durable steel main rollers, polyurethane tire, horizontal guide, and anti-lift rollers. Featuring a zinc-plated construction with sealed ball bearings, this running gear ensures smooth and reliable operation. With a maximum load capacity of 770 lb and operating temperature range from -22 to 220 °F, it is ideal for heavy-duty industrial use. The independent side shield removal design enhances maintenance efficiency, making it a versatile choice for various setups. Compliant with stringent industry standards, this running gear delivers exceptional performance and longevity.
Product Specifications
Specifications Beam Size
W5 x 16 in
Specifications Main Roller Diameter
4 in | 100 mm
Specifications Maximum Load
770 lb | 350 kg
Specifications Operating Temperature
-22 to 220 ºF
Specifications Running Gear Type
Steel Main Rollers, Polyurethane Tire, with Horizontal Guide & Anti-Lift Rollers
Specifications Speed
500 fpm
Specifications Weight
33.7 lb | 15.3 kg
