Heavy Duty Series 450 S Beam Running Gear
Heavy Duty Series 450 S Beam Running Gear
SKU:CRA-27c169
Durable Heavy Duty Running Gear for S Beams, with high load capacity and easy maintenance. Ideal for industrial applications.
Regular price
$279.99
Regular price
Sale price
$279.99
Unit price
per
Initiate Order
Heavy Duty Series 450 S Beam Running Gear
$279.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Series 450 S Beam Running Gear
$279.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

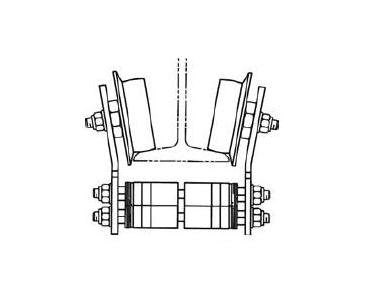

The Heavy Duty Series 450 Running Gear for S Beams is a robust and reliable solution for crane control and electrification systems. This running gear features (4) side shields with hardened steel main rollers, zinc-plated anti-lift rollers with sealed ball bearings, and galvanized steel spacers with stainless steel fasteners. With a maximum load capacity of 1100 lb and a main roller diameter of 4 inches, this running gear is designed for durability and high performance in demanding industrial applications. It allows for independent side shield removal, enhancing maintenance efficiency and system flexibility. Operating seamlessly in temperatures ranging from -22 to 220 °F, this running gear is a versatile choice for heavy-duty I beam festoon systems.
Product Specifications
Specifications Beam Size
S5 x 14.75 in
Specifications Main Roller Diameter
4 in | 100 mm
Specifications Maximum Load
1100 lb | 500 kg
Specifications Operating Temperature
-22 to 220 ºF
Specifications Running Gear Type
Steel Main Rollers, Flanged, without Anti-Lift Rollers
Specifications Speed
500 fpm
Specifications Weight
36.1 lb | 16.4 kg
