Heavy Duty Series 450 W Beam Running Gear
Heavy Duty Series 450 W Beam Running Gear
SKU:CRA-c4a1bb
Durable Series 450 Running Gear for W Beams with hardened steel rollers and high load capacity.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Heavy Duty Series 450 W Beam Running Gear
$349.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Series 450 W Beam Running Gear
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

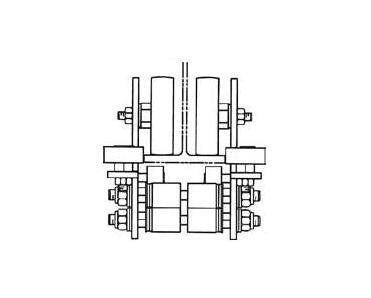

The Heavy Duty Series 450 Running Gear for W Beams is a robust solution designed for crane control applications. This running gear features four side shields with hardened steel main rollers, zinc-plated horizontal guide, and anti-lift rollers with sealed ball bearings for smooth operation. With a maximum load capacity of 450 lbs and an operating temperature range from -22 to 220 °F, this running gear ensures reliable performance even in demanding environments. The independent side shield removal design enhances maintenance efficiency, making it ideal for heavy-duty industrial settings.
Product Specifications
Specifications Beam Size
W5 x 16 in
Specifications Main Roller Diameter
2.5 in | 62 mm
Specifications Maximum Load
450 lb | 204 kg
Specifications Operating Temperature
-22 to 220 ºF
Specifications Running Gear Type
Steel Main Rollers, Crowned, with Horizontal Guide & Anti-Lift Rollers
Specifications Speed
500 fpm
Specifications Weight
27.3 lb | 12.4 kg
