Heavy Duty Series 550 Running Gear for S Beams
Heavy Duty Series 550 Running Gear for S Beams
SKU:CRA-e61004
Durable Series 550 Running Gear for S Beams with steel main rollers, polyurethane tires, and zinc-plated guide rollers. Ideal for crane control applications.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
Heavy Duty Series 550 Running Gear for S Beams
$399.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Series 550 Running Gear for S Beams
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

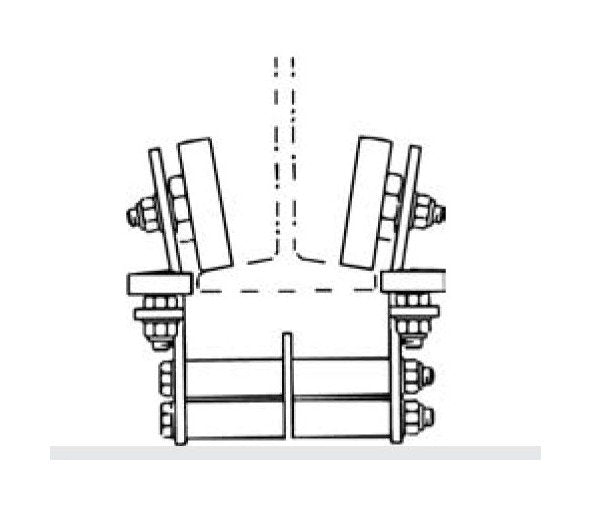

The Series 550 Running Gear for S Beams is a robust solution designed for crane control and electrification applications. Featuring steel main rollers with polyurethane tires, this running gear ensures smooth and reliable movement. The set includes four side shields with high-quality galvanized steel spacers and stainless steel fasteners for durability. With main rollers boasting polyurethane treads and steel hubs, along with zinc-plated horizontal guide and anti-lift rollers with sealed ball bearings, this running gear operates flawlessly in temperatures ranging from -22 to 220 °F. Supporting a maximum load of 770 lb, this heavy-duty system excels at speeds up to 500 fpm. Additionally, its design allows for easy side shield removal, enhancing maintenance efficiency.
Product Specifications
Specifications Main Roller Diameter
4 in | 100 mm
Specifications Maximum Load
770 lb | 350 kg
Specifications Operating Temperature
-22 to 220 ºF
Specifications Running Gear Type
Steel Main Rollers, Polyurethane Tire, with Horizontal Guide Rollers
Specifications Speed
500 fpm
Specifications Weight
31.3 lb | 14.2 kg
