Heavy Duty Series 550 Running Gear for S Beams
Heavy Duty Series 550 Running Gear for S Beams
SKU:CRA-608255
Heavy duty running gear for S beams with steel main rollers, polyurethane tire, zinc-plated components, and high load capacity. Ideal for crane control systems.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
Heavy Duty Series 550 Running Gear for S Beams
$189.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Series 550 Running Gear for S Beams
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

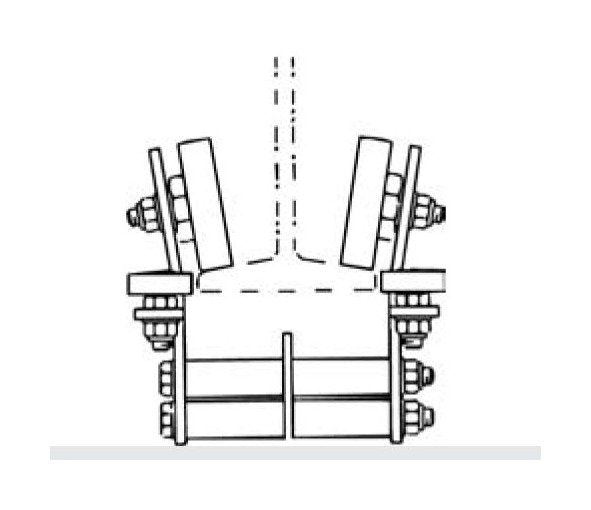

The Heavy Duty Series 550 Running Gear for S Beams is engineered for superior performance in crane control systems. With steel main rollers and polyurethane tire construction, this running gear ensures smooth and reliable operation. Featuring zinc-plated components and sealed ball bearings, it offers durability in a wide temperature range from -22 to 220 °F. The main rollers have a diameter of 6 inches, supporting a maximum load of 1650 lbs. Designed for easy maintenance, this running gear allows for independent side shield removal, providing convenience and efficiency for industrial applications.
Product Specifications
Specifications Main Roller Diameter
6 in | 150 mm
Specifications Maximum Load
1650 lb | 750 kg
Specifications Operating Temperature
-22 to 220 ºF
Specifications Running Gear Type
Steel Main Rollers, Polyurethane Tire, with Horizontal Guide Rollers
Specifications Speed
500 fpm
Specifications Weight
23.3 lb | 10.3 kg
