Heavy Duty Series Regulator - High Flow Control
Heavy Duty Series Regulator - High Flow Control
SKU:REG-df1a33
Highly reliable Heavy Duty Series Regulator for precise pressure control with high flow rates and durable construction.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
Heavy Duty Series Regulator - High Flow Control
$79.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Series Regulator - High Flow Control
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

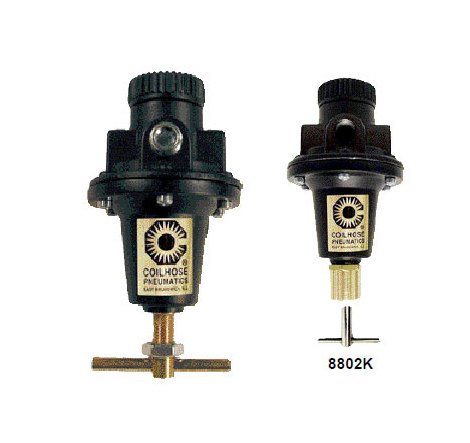

The Heavy Duty Series Regulator is renowned for its unmatched reliability and precise downstream pressure control. With high flow rates and fast response, this regulator offers exceptional performance. Available in various pressure ranges and options like tamperproof and panel mount, the regulator ensures optimal functionality. Its robust construction using die-cast aluminum and a diaphragm stop for surge protection meet the highest quality standards for durability and safety in demanding industrial environments. Suitable for water, steam, and air applications.
Product Specifications
Specifications Body Material
Die Cast Aluminum
Specifications Bowl Capacity
23 oz
Specifications Diameter
5 in
Specifications Height
8 1/4 in
Specifications Maximum Supply Pressure
250 psi
Specifications Maximum Temperature
250 ºF
Specifications Options
Gauge (G) | High Pressure Spring (0-200 PSI) (H) | L - Extra Low Pressure Spring (0-50) PSI | Panel Mount (P) | Tamperproof (K)
Specifications Pipe Size
1 in
Specifications Regulator Pressure Range
0 to 125 (Standard) | 0 to 200 (Optional) | 0 to 60 (Optional)
Specifications Warning
Although polycarbonate bowls are capable of withstanding extreme physical abuse, they are susceptible to damage and may possibly burst when subjected to some cleaning products and synthetic oils, particularly phosphate esters. Should there be any question
Specifications Weight
3 lbs
