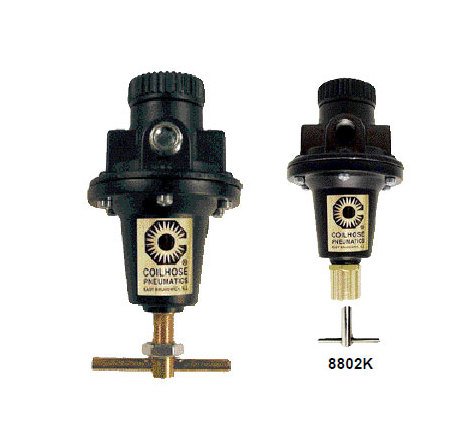

Heavy Duty Series Regulator - High Flow Control, 0-200 PSI
Heavy Duty Series Regulator - High Flow Control, 0-200 PSI
SKU:REG-3f00f8
High quality Heavy Duty Series Regulator for precise pressure control in water, steam, and air applications. Tamperproof option, various pressure ranges.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Heavy Duty Series Regulator - High Flow Control, 0-200 PSI
$89.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Series Regulator - High Flow Control, 0-200 PSI
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy Duty Series Regulator is esteemed for its exceptional quality and unwavering reliability. Designed for precise downstream pressure maintenance, it features a diaphragm stop safeguard against surges. With a robust construction of die-cast aluminum, this regulator offers a wide pressure range of 0-200 PSI, making it ideal for water, steam, and air applications. It ensures high flow rates, accurate control, and swift response, meeting the demanding needs of industrial sectors. The tamperproof option, panel mount, and gauge variants enhance usability across various setups, emphasizing safety and efficiency.
Product Specifications
Specifications Body Material
Die Cast Aluminum
Specifications Bowl Capacity
23 oz
Specifications Diameter
5 in
Specifications Height
8 1/4 in
Specifications Maximum Supply Pressure
250 psi
Specifications Maximum Temperature
250 ºF
Specifications Options
Gauge (G) | High Pressure Spring (0-200 PSI) (H) | L - Extra Low Pressure Spring (0-50) PSI | Panel Mount (P) | Tamperproof (K)
Specifications Pipe Size
3/4 in
Specifications Regulator Pressure Range
0 to 125 (Standard) | 0 to 200 (Optional) | 0 to 60 (Optional)
Specifications Warning
Although polycarbonate bowls are capable of withstanding extreme physical abuse, they are susceptible to damage and may possibly burst when subjected to some cleaning products and synthetic oils, particularly phosphate esters. Should there be any question
Specifications Weight
3 lbs
