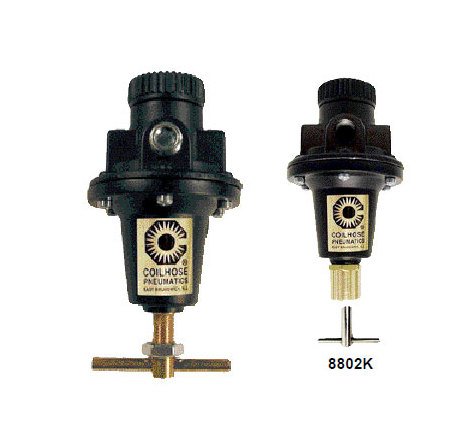

The Heavy Duty Series Regulator sets the standard in industrial-grade pressure control systems, known for unparalleled reliability. Designed with a balanced configuration for precise downstream pressure regulation, it features a diaphragm stop mechanism to prevent ruptures during pressure surges. With adaptable options including tamperproof settings and panel mounting, this regulator ensures high flow rates, accurate control, and rapid response. Suitable for water, steam, and air applications, this regulator is available in various sizes with pressure ranges of 0-200 PSI, 0-125 PSI, and 0-50 PSI. Ideal for institutional and government buyers seeking robust and compliant pressure regulation solutions.
Product Specifications
Specifications Body Material
Die Cast Aluminum
Specifications Bowl Capacity
4 oz
Specifications Diameter
3 in
Specifications Height
5 1/2 in
Specifications Maximum Supply Pressure
250 psi
Specifications Maximum Temperature
250 ºF
Specifications Options
Gauge (G) | High Pressure Spring (0-200 PSI) (H) | L - Extra Low Pressure Spring (0-50) PSI | Panel Mount (P) | Tamperproof (K)
Specifications Pipe Size
3/8 in
Specifications Regulator Pressure Range
0 to 125 (Standard) | 0 to 200 (Optional) | 0 to 60 (Optional)
Specifications Warning
Although polycarbonate bowls are capable of withstanding extreme physical abuse, they are susceptible to damage and may possibly burst when subjected to some cleaning products and synthetic oils, particularly phosphate esters. Should there be any question
Specifications Weight
3/4 lbs
