Heavy Duty Series Regulator with Balanced Design
Heavy Duty Series Regulator with Balanced Design
SKU:REG-a36adb
High-quality Heavy Duty Series Regulator with precise pressure control and durable construction. Ideal for various applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Heavy Duty Series Regulator with Balanced Design
$49.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Series Regulator with Balanced Design
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

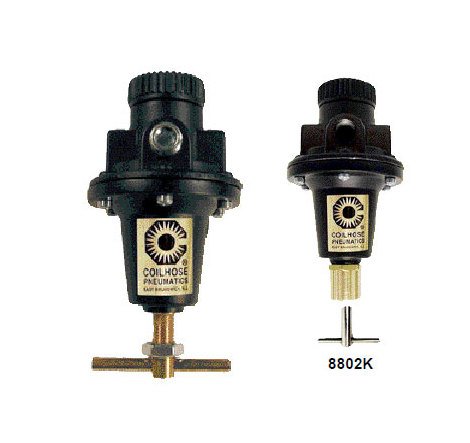

The Heavy Duty Series Regulator is a renowned solution known for its exceptional quality and dependability, making it ideal for various applications. Its balanced design ensures precise downstream pressure control, while the diaphragm stop feature safeguards against sudden surges. With options for high flow rates, accurate pressure control within ranges of 0-200 PSI, 0-125 PSI, and 0-50 PSI, and additional features like panel mount and gauge options, this regulator offers reliability and performance. Packaged conveniently, it comes in various sizes with die-cast aluminum body construction, meeting the highest industry standards for durability and functionality.
Product Specifications
Specifications Body Material
Die Cast Aluminum
Specifications Bowl Capacity
8 oz
Specifications Diameter
4 in
Specifications Height
7 in
Specifications Maximum Supply Pressure
250 psi
Specifications Maximum Temperature
250 ºF
Specifications Options
Gauge (G) | High Pressure Spring (0-200 PSI) (H) | L - Extra Low Pressure Spring (0-50) PSI | Panel Mount (P) | Tamperproof (K)
Specifications Pipe Size
1/2 in
Specifications Regulator Pressure Range
0 to 125 (Standard) | 0 to 200 (Optional) | 0 to 60 (Optional)
Specifications Warning
Although polycarbonate bowls are capable of withstanding extreme physical abuse, they are susceptible to damage and may possibly burst when subjected to some cleaning products and synthetic oils, particularly phosphate esters. Should there be any question
Specifications Weight
1 1/2 lbs
