Heavy Duty Shackle Hoist Rings - Inch
Heavy Duty Shackle Hoist Rings - Inch
SKU:HOI-acc26d
Versatile Heavy Duty Shackle Hoist Ring, Alloy Steel with 5:1 Safety Factor, Suitable for OEM Applications, 19000lb Load Rated
Regular price
$139.99
Regular price
Sale price
$139.99
Unit price
per
Initiate Order
Heavy Duty Shackle Hoist Rings - Inch
$139.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Shackle Hoist Rings - Inch
$139.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

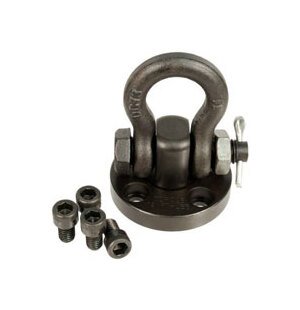

The Heavy Duty Shackle Hoist Ring is a versatile solution for industrial lifting needs. Crafted from durable Alloy Steel with a Black Oxide finish, this hoist ring offers a Safety Factor of 5:1, meeting OSHA standards. With a 180° pivot and 360° swivel, it ensures efficient maneuverability while lifting heavy structures. Tested for quality assurance, this hoist ring is ideal for OEM applications and permanent mounting. Max load rated at 19000 pounds, making it a reliable choice for heavy-duty lifting operations.
Product Specifications
Specifications A Radius
1.46 in
Specifications B Base Height
4.01 in
Specifications Country Of Origin
US
Specifications C Ring Width
5.16 in
Specifications D Diameter
1.25 in
Specifications Finish
Black Oxide
Specifications F Height
8.75 in
Specifications I Overall Width
5.90 in
Specifications Material
Alloy Steel
Specifications O Swivel Center Line
2.61 in
Specifications Pivot
180 º
Specifications Ps Load Rated
19000 Pounds (8618 kg)
Specifications Safety Factor Min
5:1
Specifications Swivel
360 º
Specifications S Bolt Hole Pattern
4.00 in
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications Weight
18.10 lb
Specifications X Base Thickness
1.14 in
Specifications Y Screw Size
3/4-10 x 1 1/4 in
