Heavy Duty Shrink Bundler - Model 737C

Heavy Duty Shrink Bundler - Model 737C

SHR-fcf4c4

Versatile and durable shrink bundler with manual operation and strong seal capabilities for various product sizes.

$14,999.99
$14,999.99
Sale

Initiate Order

Heavy Duty Shrink Bundler - Model 737C

Heavy Duty Shrink Bundler - Model 737C

$14,999.99

Quantity: 1

Claim Your Seller Account

Heavy Duty Shrink Bundler - Model 737C

Heavy Duty Shrink Bundler - Model 737C

$14,999.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

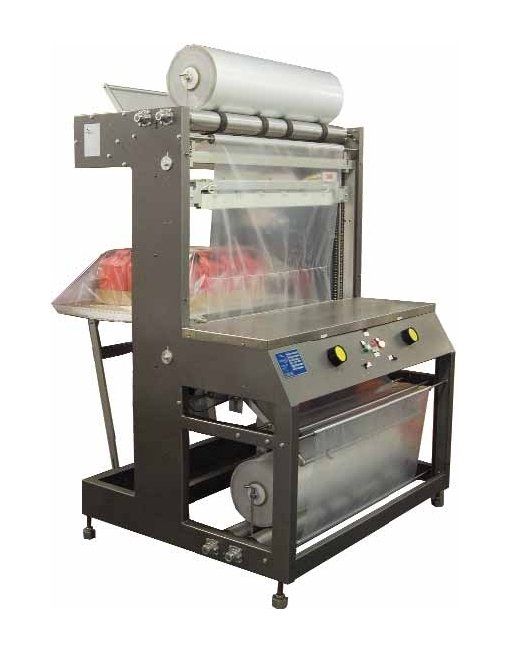

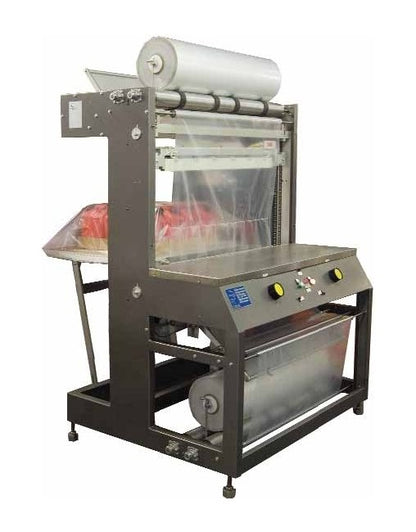

The Heavy Duty Shrink Bundler - Model 737C is a versatile solution designed for on-line packaging and off-load production. Its manually operated system, 20" seal jaw opening, and independently controlled hot knife ensure a strong and secure seal for various product sizes. With rugged steel construction, stainless steel components, and optional features like a shrink tunnel, this bundler guarantees efficiency and durability for packaging boxes, cartons, and trays across different industries.

Product Specifications

Additional Information Additional Information

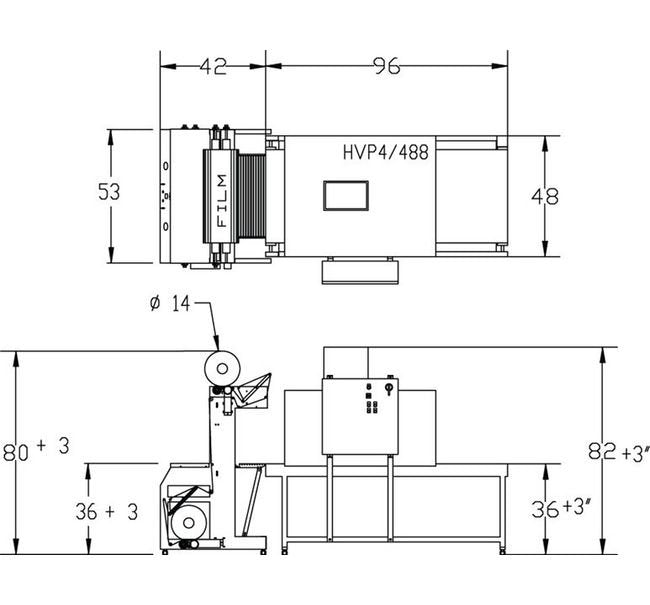

This proven sealing system has been used in hundreds of installations worldwide and is part of a long line of industry standard shrink bundlers. Combined with an ARPAC shrink tunnel, the 737C ensures optimum production efficiency with minimum downtime and maintenance costs.Mode of OperationThe operator places the manually collated configuration of cartons centered on the infeed table. The operator then manually pushes the product forward into the film web, through the seal frame until the spring-loaded guide on the opposite side of the seal frame pops up. As the product is moved forward the machine detects film usage and starts the powered film unwind feeding film. After enough film is fed, the powered film-unwind system stops. The operator then simultaneously presses the dual palm seal bar start buttons. This activates the seal bars, which close, seal, and cut the film. After the seal dwell timer times out the seal bars reopen. When the next product is advanced the sleeved product is pushed the bundle onto the customer's discharge conveyor.
Electrical Power Requirements Alternating Current Ac Voltage
120 V
Electrical Power Requirements Current
17 A
Electrical Power Requirements Frequency
60 Hz
Electrical Power Requirements Number Of Phase
1
Factory Acceptance Test Fat Factory Acceptance Test Fat
737C Option, One day Factory Acceptance Test for one product size is included. If more Factory Acceptance Testing is required see Machine Options, "Testing of additional products (each)", for price of each additional product.
Features Features

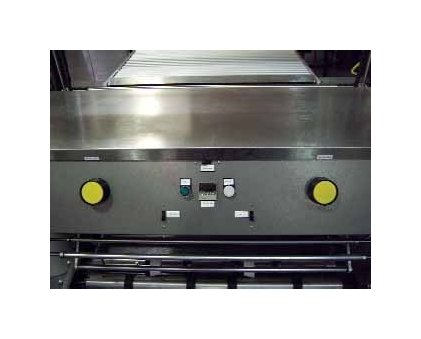

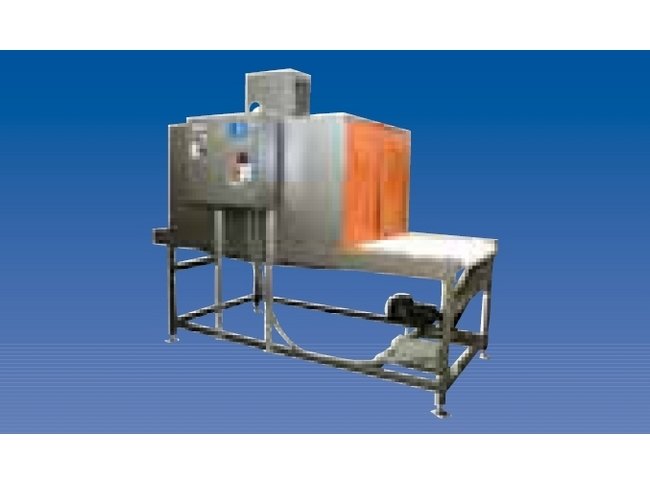

737C WrapperRugged steel construction, standard with inline front center controlsStainless steel dead plate infeed18" long idler roller discharge conveyorDual palm buttons for seal head activationSeal jaw safety systemHot knife seal systemHVP4/488 Shrink Tunnel (Optional)Rugged steel construction in a compact size for space efficiency, with right hand controlsCalrod heating elementsAllen Bradley® temperature controller1 HP drive1 HP blower motorConveyor speeds 0 to 85 feet/minute Guarding and FinishAll working areas are guarded with clear polycarbonate hinged doors with electrical interlocks.Powder coat paint system is standard.
Options Options
Stainless Steel ConstructionUL/CSA approved main electrical cabinetAuxiliary E-StopTesting of additional products (each)Model 737C Full Spare Parts KitModel 737C Minimal Spare Parts KitModel 737C Standard Spare Parts KitRecommended spare parts kit (HVP4/488)Recommended spare parts kit (HVP122260)Recommended spare parts kit (VT122248) Recommended spare parts kit (VT122272)Tunnel OptionsHVP4/488 Shrink Tunnel HVP122260 Hot Plate Shrink Tunnel VT122248 Vision Series Tunnel VT122272 Vision Series TunnelCaster Options Casters (CRS) Casters (Stainless Steel)Discharge Options 24 extended idler roller discharge in place of STD 18" discharge conveyor Powered discharge conveyor, 36" long 36" Extended Idler Roller discharge (in place of STD 18" discharge)Infeed Options 24" Extended Dead Plate Infeed Table (in place of Standard) 36" Extended Idler Roller Infeed (in place of STD 18"discharge)
Specifications Applications
Any conveyable product that can be automatically or manually loaded into the machine | Boxes | Cartons | Trays
Specifications Cabinet Standards
NEMA 4X
Specifications Compressed Air Requirements
80 psi | 0 to 5 scfm
Specifications Delivery Times
3 to 4 w
Specifications Film Gauge
1.5 to 6 mil
Specifications Film Roll Diameter
0 to 14 in
Specifications Film Roll Width
0 to 37 in
Specifications Film Type
Low Density Polyethylene (L.D.P.E.) | Polyethylene
Specifications Frame Material
Stainless Steel
Specifications Height
0 to 19.5 in
Specifications Length Flow Direction
0 to 16 in
Specifications Other Film Specifications
Single-wound Film Roll
Specifications Speed
Manually fed and manually operated seal bars
Specifications Width Across Machine
0 to 35 in
