Heavy Duty Side Pull Hoist Ring - Inch
Heavy Duty Side Pull Hoist Ring - Inch
SKU:HOI-7ea499
Heavy Duty Side Pull Hoist Ring - Inch: Premium industrial hoist ring for heavy lifting, self-aligning with 360-degree swivel, high load rating, and durable construction.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Heavy Duty Side Pull Hoist Ring - Inch
$129.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Side Pull Hoist Ring - Inch
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

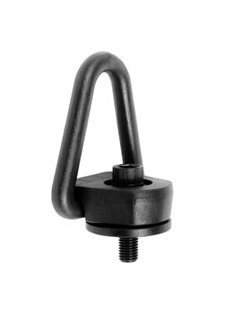

The Heavy Duty Side Pull Hoist Ring - Inch is a top-quality industrial hoist ring meticulously crafted to meet stringent standards. Designed for heavy lifting applications, this hoist ring features self-alignment in the direction of the load and a 360-degree swivel capability. Made from durable alloy steel with a black oxide finish, it boasts a 90-degree pivot, 160.00 lb·ft torque, and a load rating of 8000 pounds (3629 kg). With a compact design and 100% magnetic particle inspection, this hoist ring ensures reliability and safety in various lifting operations.
Product Specifications
Specifications A Radius
0.88 in
Specifications B Base Height
2.38 in
Specifications Country Of Origin
US
Specifications D Diameter
0.75 in
Specifications E Thread Length
1.25 in
Specifications Finish
Black Oxide
Specifications F Height
6.25 in
Specifications G Thread Size
7/8-9
Specifications H1 Inside Clearance
4.19 in
Specifications H Inside Clearance
3.88 in
Specifications I Overall Width
5-1/4 in
Specifications J Base Width
3.13 in
Specifications Material
Alloy Steel
Specifications Pivot
90 º
Specifications Ps Load Rated
8000 Pounds (3629 kg)
Specifications Swivel
360 º
Specifications Torque
160.00 lb·ft
Specifications V Center Line 1
1.63 in
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications Weight
6.13 lb
Specifications W Center Line 2
6.75 in
