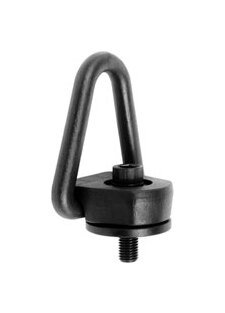

Heavy Duty Side Pull Hoist Ring - Metric
Heavy Duty Side Pull Hoist Ring - Metric
SKU:HOI-462020
Robust Heavy Duty Side Pull Hoist Ring - Metric with 360° swivel and 4189lbs load rating for secure lifting in industrial applications.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Heavy Duty Side Pull Hoist Ring - Metric
$129.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Side Pull Hoist Ring - Metric
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy Duty Side Pull Hoist Ring - Metric is a robust industrial hoist ring engineered to strict standards. This hoist ring is designed for heavy-duty applications, featuring a self-aligning mechanism in the direction of the load and a 360° swivel capability. Made of alloy steel with a durable black oxide finish, this hoist ring offers secure lifting with a load rating of 4189 pounds (1900 kg) and torque of 80.00 N·m. With 100% magnetic particle inspection, this hoist ring ensures reliability and safety in various lifting operations.
Product Specifications
Specifications A Radius
19.00 mm
Specifications B Base Height
42.00 mm
Specifications D Diameter
13.00 mm
Specifications E Thread Length
37.00 mm
Specifications Finish
Black Oxide
Specifications F Height
120.00 mm
Specifications G Thread Size
M16x2
Specifications H1 Inside Clearance
81.00 mm
Specifications H Inside Clearance
65.00 mm
Specifications I Overall Width
99.00 mm
Specifications J Base Width
56.00 mm
Specifications Material
Alloy Steel
Specifications Pivot
90 º
Specifications Ps Load Rated
4189 Pounds (1900 kg)
Specifications Swivel
360 º
Specifications Torque
80.00 N·m
Specifications V Center Line 1
32.00 mm
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications Weight
1.01 kg
Specifications W Center Line 2
130.00 mm
