The Heavy-Duty Single Base Mounted Vertical Sheave Assemblies, model SVS, combine robust construction with a high lifting capacity of 25000 lbs. It features a 1-inch wire rope diameter and precise 20-inch pitch diameter. Ideal for lifting and pulling applications, this assembly includes controls such as a lever drum mounted at the winch and a magnetic remote push button for enhanced operational efficiency. With versatile mounting options including horizontal base, inverted ceiling, and vertical configuration, this assembly is a dependable choice for demanding winching tasks.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Capacity
25000 lbs.
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton

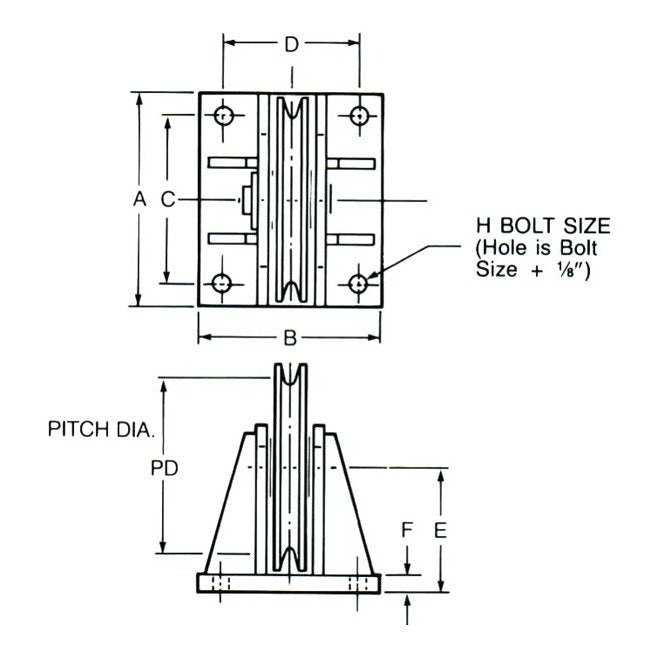

Specifications Dimension A
21 1/2 inches
Specifications Dimension B
14 inches
Specifications Dimension C
18 inches
Specifications Dimension D
11 inches
Specifications Dimension E
12 3/4 inches
Specifications Dimension F
1 1/2 inches
Specifications Dimension H
1 3/4 inches
Specifications Model
SVS
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Pitch Diameter
20 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Diameter
1 inches
