Enhance your industrial machinery with the Heavy-Duty Single Flange CB Elements. Designed to handle high torque ratings of 53600 lb·in, this essential component ensures efficient power transmission at speeds up to 1300 rpm. With robust materials and precise engineering, these elements offer reliable performance, minimal centrifugal loss, and longevity. Weighing 88 lbs, with ample friction area and multiple mounting holes, they provide seamless integration and optimal functionality. Upgrade to the Heavy-Duty Single Flange CB Elements for enhanced operational efficiency and durability.

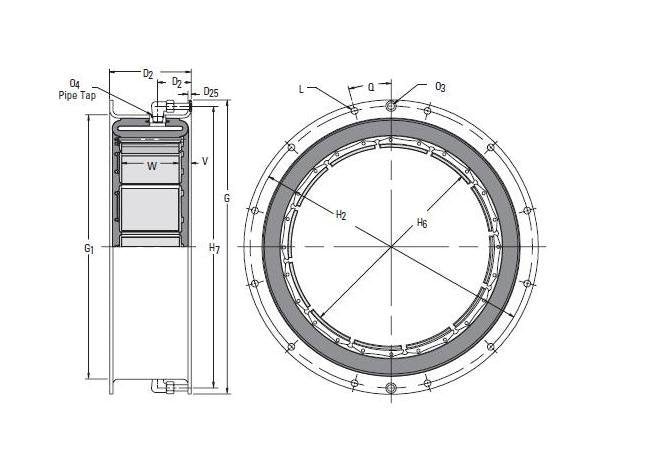

Product Specifications
Note 0
Refers to basic part number only. When ordering, the number of air inlets and type of connection must be specified.
Specifications Air Inlet Thread
3/8-18
Specifications Air Tube Cavity
170 in³ | 2.79 dm³
Specifications Angle Q
15.000 º
Specifications Bolt Hole Size L
0.500 in | 13 mm
Specifications Centrifugal Loss Constant Cs
1.73 E-06 bar/rpm2 | 25 E-06 psi/rpm2
Specifications Dimension D2
6.63 in | 168 mm
Specifications Dimension D24
2.50 in | 64 mm
Specifications Dimension D25
0.19 in | 5 mm
Specifications Dimension G
27.500 in | 698.5 mm
Specifications Dimension G1
24.75 in | 629 mm
Specifications Dimension H2
26.375 in | 669.9 mm
Specifications Dimension H6
20.19 in | 513 mm
Specifications Dimension H7
26.38 in | 670 mm
Specifications Dimension O3
0.38 in | 10 mm
Specifications Dimension V
0.81 in | 21 mm
Specifications Friction Area
288 in² | 1858 cm²
Specifications Friction Shoe Width W
5.00 in | 127 mm
Specifications Inertia
90 lb·ft² | 3.78 kg·m²
Specifications Maximum Speed
1300 rpm
Specifications Minimum Drum Diameter
19.87 in | 505 mm
Specifications New Friction Lining Thickness
0.26 in | 7 mm
Specifications Number Of Friction Shoes
12
Specifications Number Of Mounting Holes
12
Specifications Size
20CB500
Specifications Torque Rating 75 Psi55 Bar
53600 lb·in | 6060 Nm
Specifications Weight
88 lb | 40 kg
Specifications Worn Friction Lining Thickness
0.06 in | 2 mm
