Heavy Duty Single Flange CB Elements

Heavy Duty Single Flange CB Elements

CLU-c34bc3

High-performance Single Flange CB Elements for industrial applications. Torque: 1460 lb·in, Speed: 2000 rpm.

$299.99
$299.99
Sale

Initiate Order

Heavy Duty Single Flange CB Elements

Heavy Duty Single Flange CB Elements

$299.99

Quantity: 1

Claim Your Seller Account

Heavy Duty Single Flange CB Elements

Heavy Duty Single Flange CB Elements

$299.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Heavy Duty Single Flange CB Elements in size 5CB200 are built to deliver exceptional performance in demanding industrial applications. With a torque rating of 1460 lb·in, maximum speed of 2000 rpm, and precise dimensions for optimal fit, these elements ensure reliable operation. Weighing 3.5 lb, they feature a durable friction lining, multiple mounting holes, and a sturdy design for longevity. These elements meet stringent industrial standards, making them ideal for institutional and government procurement needs.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

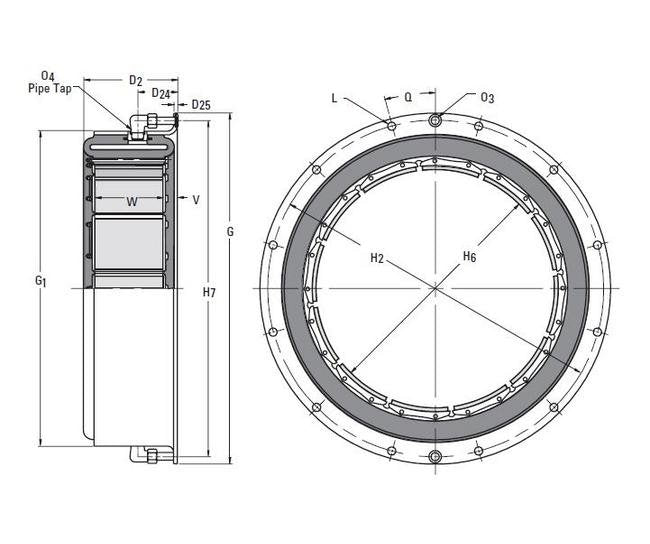

Product Specifications

Note 0
Refers to basic part number only. When ordering, the number of air inlets and type of connection must be specified.
Specifications Air Inlet Thread
1/8-27
Specifications Air Tube Cavity
17 in³ | 0.28 dm³
Specifications Angle Q
22.500 º
Specifications Bolt Hole Size L
0.31 in | 8 mm
Specifications Centrifugal Loss Constant Cs
0.14 E-06 bar/rpm2 | 2.0 E-06 psi/rpm2
Specifications Dimension D2
2.85 in | 72 mm
Specifications Dimension D24
1.50 in | 38 mm
Specifications Dimension D25
0.10 in | 2 mm
Specifications Dimension G
8.819 in | 224 mm
Specifications Dimension G1
7.20 in | 183 mm
Specifications Dimension H2
8.071 in | 205 mm
Specifications Dimension H6
5.16 in | 131 mm
Specifications Dimension H7
8.07 in | 205 mm
Specifications Dimension O3
0.29 in | 7 mm
Specifications Dimension V
0.48 in | 12 mm
Specifications Friction Area
30 in² | 193.5 cm²
Specifications Friction Shoe Width W
2.00 in | 51 mm
Specifications Inertia
0.4 lb·ft² | 0.02 kg·m²
Specifications Maximum Speed
2000 rpm
Specifications Minimum Drum Diameter
4.90 in | 124 mm
Specifications New Friction Lining Thickness
0.20 in | 5 mm
Specifications Number Of Friction Shoes
6
Specifications Number Of Mounting Holes
8
Specifications Size
5CB200
Specifications Torque Rating 75 Psi55 Bar
1460 lb·in | 165 Nm
Specifications Weight
3.5 lb | 1.6 kg
Specifications Worn Friction Lining Thickness
0.04 in | 1 mm
