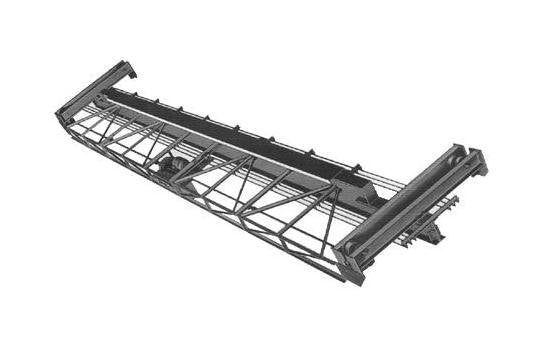

Enhance your workflow efficiency with our Heavy Duty Single Girder Motor-Driven Underhung Cranes. Built to withstand extreme conditions, both indoors and outdoors, these cranes feature precision Tru-Tred Wheels, side roller guidance for smooth operation, and heavy-duty cam follower bearings for reduced wear. The alloy carbon steel precision spur gearing and Timken tapered roller wheel bearings ensure longevity and reliability. With precision oil bath lubricated helical gearing and a model HD helical center drive, these cranes are designed for smooth, efficient operation. The adjustable electric motor brake and heavy-duty magnetic reversing control guarantee precise handling. Ideal for a wide range of applications, these cranes are a durable and versatile choice for your facility.
Product Specifications
Design Details 0
Wheel Bases : Wide range of wheel bases available in each capacity range to meet C.M.A.A. wheel base to span ratio thru 60'-0" of Crane Span. Tru-Tred Wheels : Precision machined from alloy steel with flangeless design to meet the most demanding crane service requirements. Side Roller Guidance : Heavy duty cam follower bearings provide smooth non-skewing crane operation plus reduced crane wheel and runway rail wear. Wheel Bearings : Heavy duty long life rated pre-lubricated and sealed Timken tapered roller wheel bearings designed to take the unavoidable shocks of crane duty. Wheel Gearing : Alloy carbon steel precision spur gearing with large pitch diameter pinion gears. Truck Frames : Heavy fabricated steel jig constructed for true-rolling truck operation. Split truck design allows quick easy crane erection on either open end or closed end runway system.Center Drive : Model HD Helical Center Drives are available to meet your crane bridge drive requirements. Precision oil bath lubricated helical gearing is included for smooth efficient crane operation. A standard "Rightway" foot mounted drive motor is connected to the helical gear reducer thru a flexible coupling providing "positive drive" forward-reverse service. Adjustable electric motor brake is suggested for smooth crane deceleration and final stop. Controls : Single speed heavy duty magnetic reversing control is available with a 115 V control volt- age transformer all internally wired to legended terminal strips mounted in a NEMA-1 enclosure. Adjustable ballast resistor is suggested for smooth crane acceleration and reverse plugging gradual deceleration for smooth stop.
Specifications 0
Runway Collectors
Specifications Bridge Conductors
Bare Copper Wire | Safety Enclosed
Specifications Capacity
7 1/2 Tons
Specifications Crane
Hand Geared | Motor Driven | Push Type

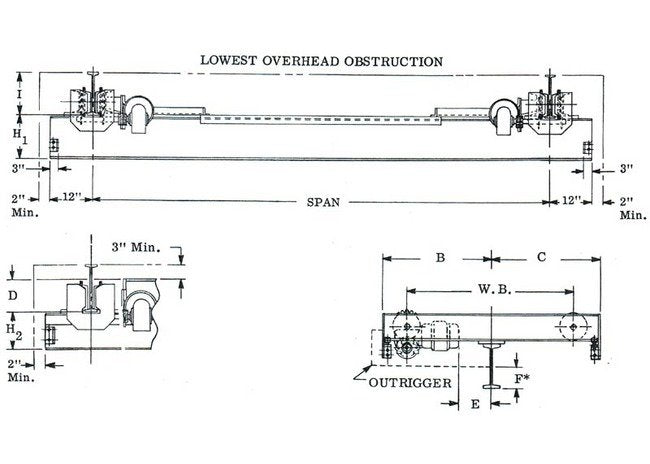

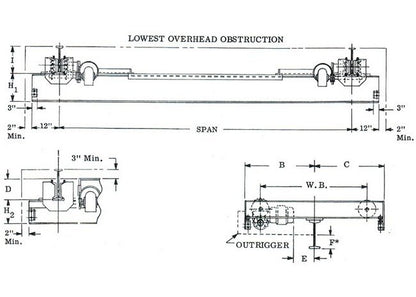

Specifications Dimension A
8 1/2 inches
Specifications Dimension B
3'-10"
Specifications Dimension C
3'-9"
Specifications Dimension D
3/8 inches
Specifications Dimension E
9 inches
Specifications Dimension F
4 5/16 inches
Specifications Dimension G
2 11/16 inches
Specifications Dimension H
1/4 inches
Specifications Dimension I Max
S18 x 54.7
Specifications Dimension I Min
S12 x 31.8
Specifications Dimension J
15/16 inches
Specifications Dimension K
3 3/4 inches
Specifications Dimension L
1 inches
Specifications Dimension M
3 1/2 inches
Specifications Dimension N
6 1/4 inches
Specifications Dimension P
8 inches
Specifications Dimension Q
14 5/8 inches
Specifications Dimension R
1 1/2 inches
Specifications Dimension S
3/8 inches
Specifications Dimension T
3 inches
Specifications Dimension U
5/8 inches
Specifications Dimension V
3 inches
Specifications Dimension W
13/16 inches
Specifications Dimension X
1 inches
Specifications Electric
&nbps;
Specifications Gear Ratio
2.29:1
Specifications Hoist Headroom
Hand Chain | Low Headroom | Standard Headroom
Specifications Model
USC
Specifications Net Weight Per Pair
1185 lbs.
Specifications Trolley
Hand Geared | Motor Driven | Push Type
Specifications Type
Top Running | Underhung | Single Girder
Specifications Usage
Extreme Conditions | Indoor Use | Outdoor Use
Specifications Wheel Base
6'-0"
Specifications Wheel Load Per Pair
12000 lbs.
