Heavy Duty Single Girder Motorized Overhead Cranes
Heavy Duty Single Girder Motorized Overhead Cranes
SKU:REL-b0e497
Experience unmatched lifting power with our Heavy Duty Single Girder Motorized Crane, ideal for extreme conditions. Top performance guaranteed.
Regular price
$7,999.99
Regular price
Sale price
$7,999.99
Unit price
per
Initiate Order
Heavy Duty Single Girder Motorized Overhead Cranes
$7,999.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Single Girder Motorized Overhead Cranes
$7,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

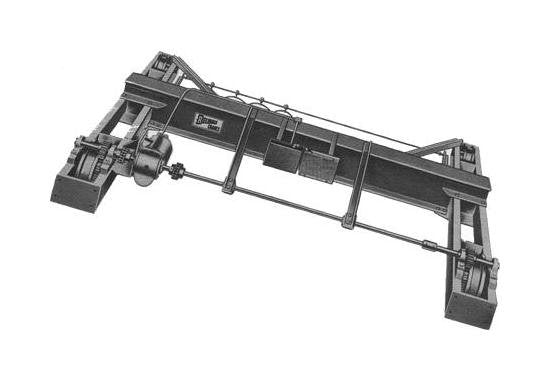

The Heavy Duty Single Girder Motorized Overhead Cranes provide exceptional lifting capabilities with a 1-ton capacity and a sturdy S15 x 42.9 girder size. Designed for extreme conditions, they excel in both indoor and outdoor use. With precise dimensions, top running functionality, and versatile crane and trolley options, these cranes guarantee superior performance. The inclusion of runway collectors, safety features like bare copper wire bridge conductors, and compliance with industry standards ensure reliable and efficient operations.
Product Specifications
Specifications 0
Runway Collectors
Specifications Bridge Conductors
Bare Copper Wire | Safety Enclosed
Specifications Capacity
1 Tons
Specifications Crane
Hand Geared | Motor Driven | Push Type
Specifications Crane Weight
2785 lbs.

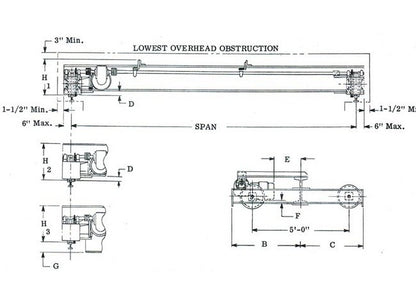

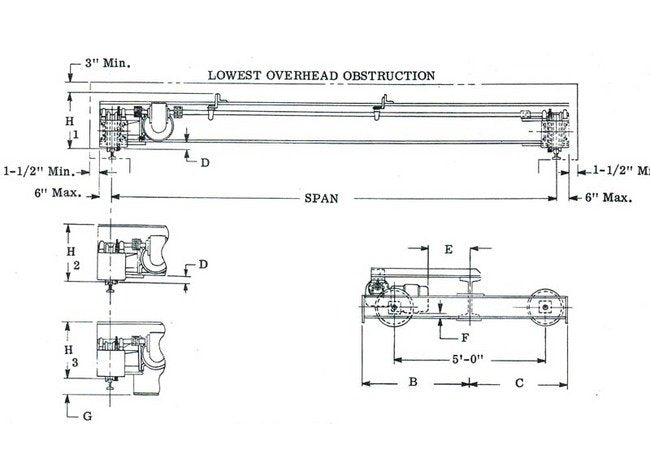

Specifications Dimension B
3'-2"
Specifications Dimension C
3'-0"
Specifications Dimension D
3/4 inches
Specifications Dimension E
1'-2"
Specifications Dimension F
2 inches
Specifications Dimension G
2 inches
Specifications Dimension H1
19 inches
Specifications Dimension H2
16 inches
Specifications Dimension H3
13 inches
Specifications Electric
&nbps;
Specifications Girder Size
S15 x 42.9
Specifications Hoist Headroom
Hand Chain | Low Headroom | Standard Headroom
Specifications Model
Model TSS Motorized Crane
Specifications Runway Rail
40# A.S.C.E.
Specifications Span
30'-0"
Specifications Trolley
Hand Geared | Motor Driven | Push Type
Specifications Type
Top Running | Underhung | Single Girder
Specifications Usage
Extreme Conditions | Indoor Use | Outdoor Use
Specifications Wheel Diameter
8 inches
Specifications Wheel Load Per Wheel
1890 lbs.
