Heavy Duty Single Girder Motorized Top Running Cranes
Heavy Duty Single Girder Motorized Top Running Cranes
SKU:REL-f254bc
Heavy Duty Motorized Top Running Cranes for extreme conditions, offering 2-ton capacity, robust construction, and reliable performance.
Regular price
$7,999.99
Regular price
Sale price
$7,999.99
Unit price
per
Initiate Order
Heavy Duty Single Girder Motorized Top Running Cranes
$7,999.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Single Girder Motorized Top Running Cranes
$7,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

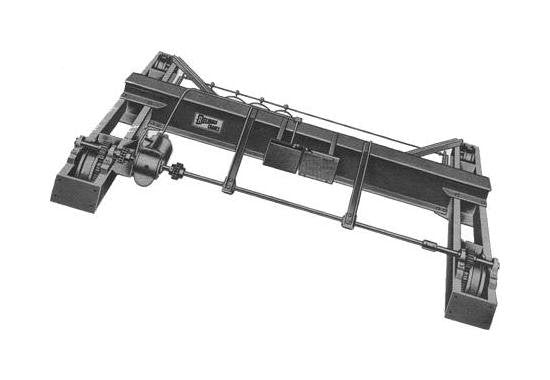

Our Heavy Duty Single Girder Motorized Top Running Cranes are designed for extreme conditions, combining precision engineering with robust construction. Featuring a Model TSS Motorized Crane with a capacity of 2 tons and a 20'-0" span, these cranes offer top-notch performance. The S12 x 31.8 girder size ensures stability, while the 40# A.S.C.E. runway rail and reliable wheel load capability make them ideal for indoor or outdoor use. With options for motor-driven operation, these cranes are perfect for heavy-duty lifting tasks. Compliant with industry standards, these cranes guarantee superior performance and durability.
Product Specifications
Specifications 0
Runway Collectors
Specifications Bridge Conductors
Bare Copper Wire | Safety Enclosed
Specifications Capacity
2 Tons
Specifications Crane
Hand Geared | Motor Driven | Push Type
Specifications Crane Weight
1990 lbs.

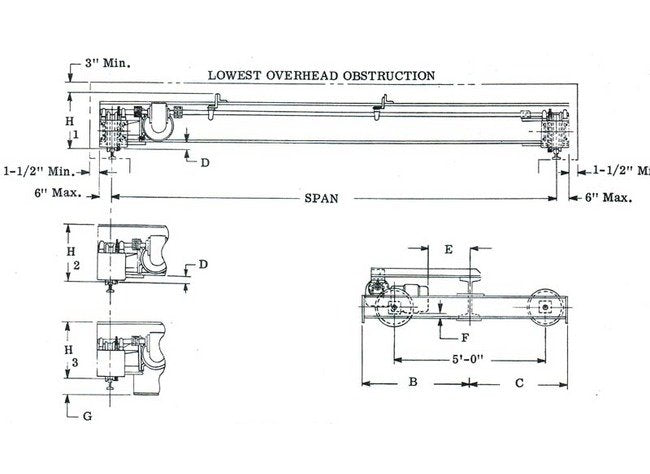

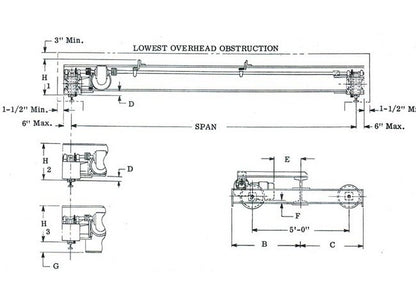

Specifications Dimension B
3'-2"
Specifications Dimension C
3'-0"
Specifications Dimension D
3/4 inches
Specifications Dimension E
1'-2"
Specifications Dimension F
2 inches
Specifications Dimension H1
16 inches
Specifications Dimension H2
13 inches
Specifications Electric
&nbps;
Specifications Girder Size
S12 x 31.8
Specifications Hoist Headroom
Hand Chain | Low Headroom | Standard Headroom
Specifications Model
Model TSS Motorized Crane
Specifications Runway Rail
40# A.S.C.E.
Specifications Span
20'-0"
Specifications Trolley
Hand Geared | Motor Driven | Push Type
Specifications Type
Top Running | Underhung | Single Girder
Specifications Usage
Extreme Conditions | Indoor Use | Outdoor Use
Specifications Wheel Diameter
8 inches
Specifications Wheel Load Per Wheel
2830 lbs.
