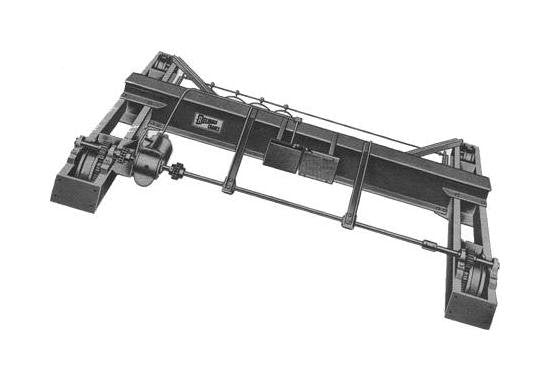

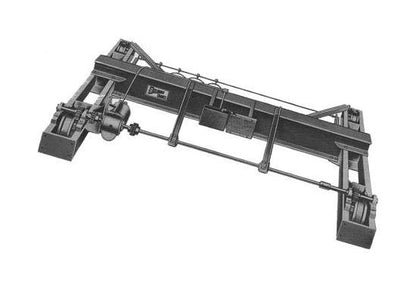

The Heavy-Duty Single Girder Top Running Motorized Crane is a robust solution for industrial and institutional applications. With a capacity of 7 1/2 Tons and a sturdy span of 15 feet, this crane is designed for extreme conditions, suitable for indoor and outdoor use. The S15 x 42.9 girder size ensures stability, with dimensions carefully crafted for efficient operation. Equipped with top-tier features like hand geared or motor-driven options and safety enclosed bridge conductors, this crane is built to deliver superior performance and reliability.
Product Specifications
Specifications 0
Runway Collectors
Specifications Bridge Conductors
Bare Copper Wire | Safety Enclosed
Specifications Capacity
7 1/2 Tons
Specifications Crane
Hand Geared | Motor Driven | Push Type
Specifications Crane Weight
2405 lbs.

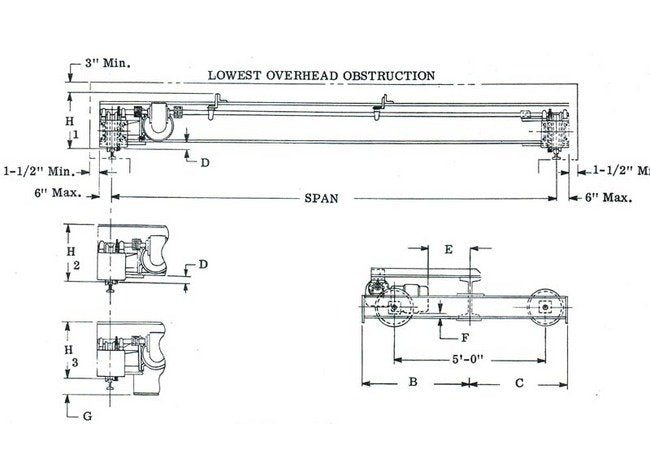

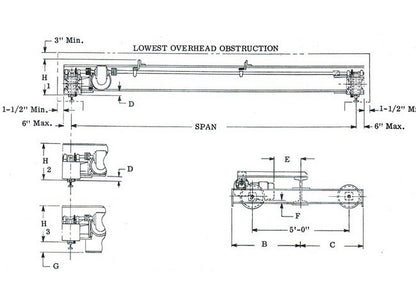

Specifications Dimension B
3'-6"
Specifications Dimension C
3'-2"
Specifications Dimension D
1 1/2 inches
Specifications Dimension E
1'-3"
Specifications Dimension F
4 inches
Specifications Dimension H1
19 inches
Specifications Dimension H2
18 inches
Specifications Electric
&nbps;
Specifications Girder Size
S15 x 42.9
Specifications Hoist Headroom
Hand Chain | Low Headroom | Standard Headroom
Specifications Model
Model TSS Motorized Crane
Specifications Runway Rail
40# A.S.C.E.
Specifications Span
15'-0"
Specifications Trolley
Hand Geared | Motor Driven | Push Type
Specifications Type
Top Running | Underhung | Single Girder
Specifications Usage
Extreme Conditions | Indoor Use | Outdoor Use
Specifications Wheel Diameter
12 inches
Specifications Wheel Load Per Wheel
9100 lbs.
