Heavy-Duty Single Horizontal Sheave Assemblies
Heavy-Duty Single Horizontal Sheave Assemblies
SKU:RIG-c7a5a0
Durable Single Horizontal Sheave Assemblies for heavy-duty lifting and pulling tasks. 4000 lbs. capacity, versatile mounting options, and convenient controls.
Regular price
$259.99
Regular price
Sale price
$259.99
Unit price
per
Initiate Order
Heavy-Duty Single Horizontal Sheave Assemblies
$259.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Single Horizontal Sheave Assemblies
$259.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy-Duty Single Horizontal Sheave Assemblies, model SHS, are engineered for robust performance, with a 4000 lbs. capacity and designed for heavy-duty lifting and pulling tasks. Featuring a wire rope diameter of 7/16 inches and a pitch diameter of 6 inches, these assemblies ensure secure and reliable operation. With dimensions crafted for efficiency and durability, including multiple mounting options for versatility, such as horizontal base, inverted ceiling, and vertical configurations, these assemblies are ideal for various applications. The integrated lever drum and magnetic remote pushbutton controls offer convenience and precise operation. Whether for electrical brake requirements or demanding lifting and pulling tasks, these assemblies deliver top-notch performance while meeting stringent industrial standards.
Product Specifications
Specifications Capacity
4000 lbs.
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton

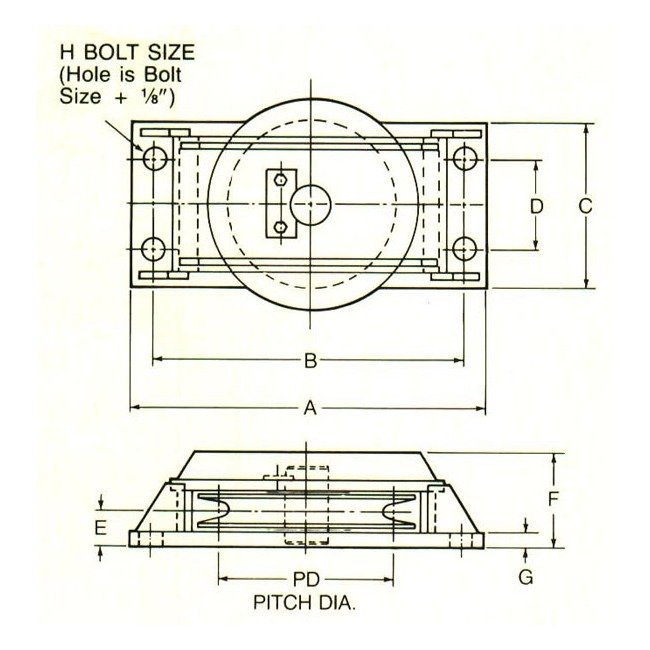

Specifications Dimension A
14 1/2 inches
Specifications Dimension B
12 3/4 inches
Specifications Dimension C
6 inches
Specifications Dimension D
3 1/4 inches
Specifications Dimension E
1 5/8 inches
Specifications Dimension F
4 1/4 inches
Specifications Dimension G
3/4 inches
Specifications Dimension H
7/8 inches
Specifications Model
SHS
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Pitch Diameter
6 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Diameter
7/16 inches
