Heavy Duty Single Horizontal Sheave Assemblies
Heavy Duty Single Horizontal Sheave Assemblies
SKU:RIG-131554
High-capacity sheave assemblies for heavy-duty lifting & pulling tasks. Compact design, safety controls, & compliance with federal standards.
Regular price
$1,599.99
Regular price
Sale price
$1,599.99
Unit price
per
Initiate Order
Heavy Duty Single Horizontal Sheave Assemblies
$1,599.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Single Horizontal Sheave Assemblies
$1,599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy Duty Single Horizontal Sheave Assemblies, model SHS, are engineered for superior performance in demanding environments. With a robust capacity of 20000 lbs. and a wire rope diameter of 7/8 inches, these assemblies are built to handle heavy-duty lifting and pulling tasks with precision. Featuring a compact design with dimensions tailored for efficiency, including key safety controls like Electrical Brake Required and options for versatile mounting, these assemblies ensure seamless operation and reliability in varied applications. Compliant with federal procurement standards for quality assurance, these sheave assemblies are optimal for industrial, governmental, and institutional use.
Product Specifications
Specifications Capacity
20000 lbs.
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton

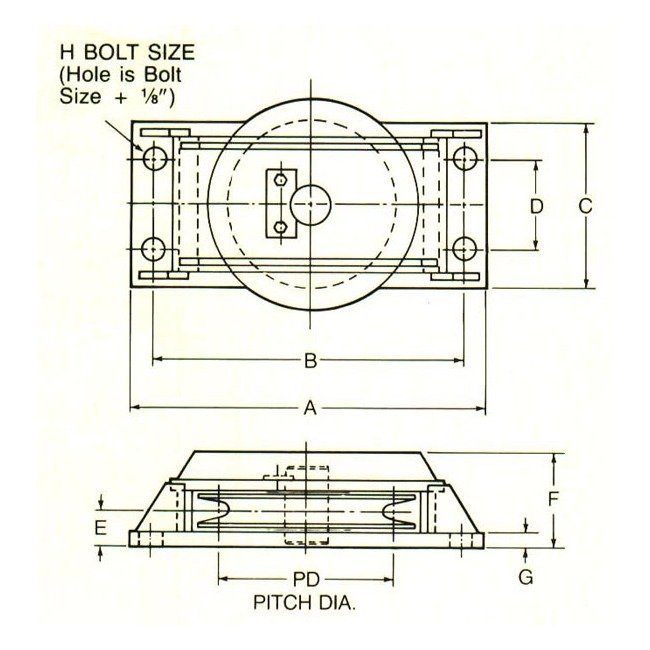

Specifications Dimension A
27 inches
Specifications Dimension B
24 inches
Specifications Dimension C
16 inches
Specifications Dimension D
9 inches
Specifications Dimension E
3 1/4 inches
Specifications Dimension F
9 inches
Specifications Dimension G
1 1/2 inches
Specifications Dimension H
1 1/2 inches
Specifications Model
SHS
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Pitch Diameter
17 1/2 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Diameter
7/8 inches
