Heavy-Duty Single Horizontal Sheave Assemblies
Heavy-Duty Single Horizontal Sheave Assemblies
SKU:RIG-0a5cc8
Powerful and durable single horizontal sheave assemblies with 7500 lbs. capacity, ideal for industrial and government use.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
Heavy-Duty Single Horizontal Sheave Assemblies
$499.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Single Horizontal Sheave Assemblies
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy-Duty Single Horizontal Sheave Assemblies are built to handle heavy loads with ease, boasting a robust capacity of 7500 lbs. These assemblies are designed for durability, featuring a Wire Rope Diameter of 9/16 inches and a sturdy Pitch Diameter of 11 1/4 inches. With versatile mounting options and essential safety controls like Electrical Brake and Magnetic Remote Pushbutton, this product ensures smooth operations in lifting and pulling applications. Ideal for industrial settings and government projects requiring reliable and efficient winching solutions.

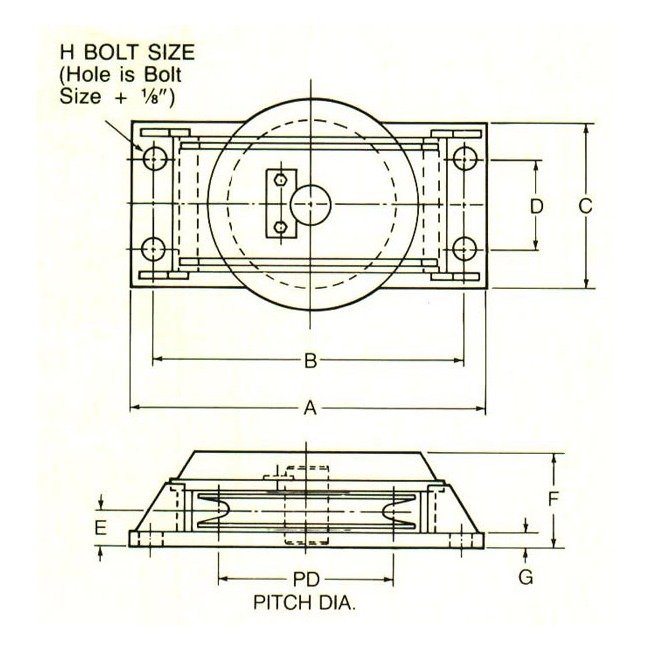

Product Specifications
Specifications Capacity
7500 lbs.
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Dimension A
19 inches
Specifications Dimension B
16 1/4 inches
Specifications Dimension C
10 inches
Specifications Dimension D
5 inches
Specifications Dimension E
2 1/8 inches
Specifications Dimension F
5 1/2 inches
Specifications Dimension G
7/8 inches
Specifications Dimension H
1 3/4 inches
Specifications Model
SHS
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Pitch Diameter
11 1/4 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Diameter
9/16 inches
