Heavy-Duty Single Horizontal Sheave Assemblies
Heavy-Duty Single Horizontal Sheave Assemblies
SKU:RIG-58d563
Heavy-Duty Single Horizontal Sheave Assemblies with 10000 lbs. capacity, ideal for braking, lifting, and pulling applications. Versatile mounting options.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
Heavy-Duty Single Horizontal Sheave Assemblies
$289.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Single Horizontal Sheave Assemblies
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy-Duty Single Horizontal Sheave Assemblies offer a robust solution for demanding lifting and pulling tasks. With a high capacity of 10000 lbs. and a durable construction, these assemblies are designed to excel in electrical brake applications, lifting operations, and pulling tasks. Featuring a 5/8 inches wire rope diameter and dimensions compliant with industry standards, including a pitch diameter of 12 1/2 inches, these assemblies provide reliable performance. The included controls, such as the lever drum mounted at the winch and magnetic remote pushbutton, ensure ease of operation. Suitable for horizontal base, inverted ceiling, and vertical mounting, these assemblies are versatile for various setups.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Capacity
10000 lbs.
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton

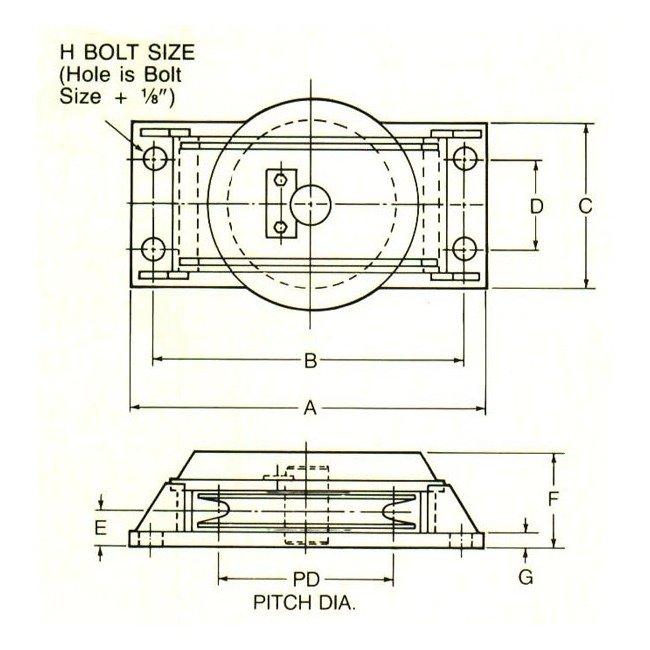

Specifications Dimension A
20 inches
Specifications Dimension B
17 1/2 inches
Specifications Dimension C
12 inches
Specifications Dimension D
6 1/2 inches
Specifications Dimension E
2 1/4 inches
Specifications Dimension F
5 3/8 inches
Specifications Dimension G
1 inches
Specifications Dimension H
1 1/4 inches
Specifications Model
SHS
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Pitch Diameter
12 1/2 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Diameter
5/8 inches
