Heavy Duty Single Horizontal Sheave Assembly
Heavy Duty Single Horizontal Sheave Assembly
SKU:RIG-404d60
High-capacity Single Horizontal Sheave Assembly for heavy-duty lifting and pulling tasks. Features Electrical Brake, versatile mounting options, and precise Controls. Compliant with Federal/DoD procurement standards.
Regular price
$699.99
Regular price
Sale price
$699.99
Unit price
per
Initiate Order
Heavy Duty Single Horizontal Sheave Assembly
$699.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Single Horizontal Sheave Assembly
$699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Single Horizontal Sheave Assembly, model SHS, is a robust and reliable solution designed for heavy-duty lifting and pulling tasks. With a high capacity of 12000 lbs. and a wire rope diameter of 3/4 inches, this assembly excels in demanding industrial applications. Featuring a compact design with dimensions A: 24 inches, B: 21 inches, and various mounting options, including Horizontal Base, Inverted Ceiling, and Vertical, this assembly offers versatility and ease of installation. Equipped with Electrical Brake for enhanced safety and precise Controls including a Lever Drum mounted at the winch and a Magnetic Remote Pushbutton, this assembly ensures efficient operation. Compliant with Federal/DoD procurement standards and suitable for meeting GSA requirements, this assembly is a top choice for institutions seeking durability and performance.
Product Specifications
Specifications Capacity
12000 lbs.
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton

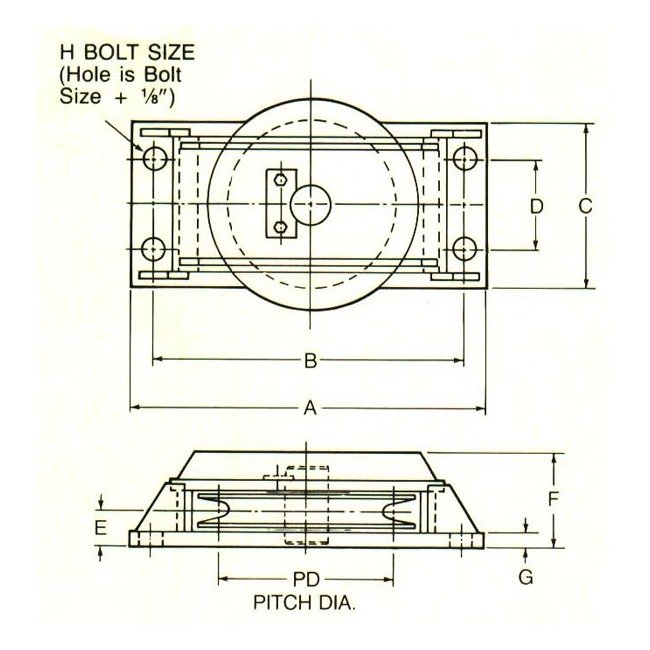

Specifications Dimension A
24 inches
Specifications Dimension B
21 inches
Specifications Dimension C
12 inches
Specifications Dimension D
7 inches
Specifications Dimension E
2 7/8 inches
Specifications Dimension F
7 inches
Specifications Dimension G
1 1/4 inches
Specifications Dimension H
1 1/4 inches
Specifications Model
SHS
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Pitch Diameter
15 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Diameter
3/4 inches
